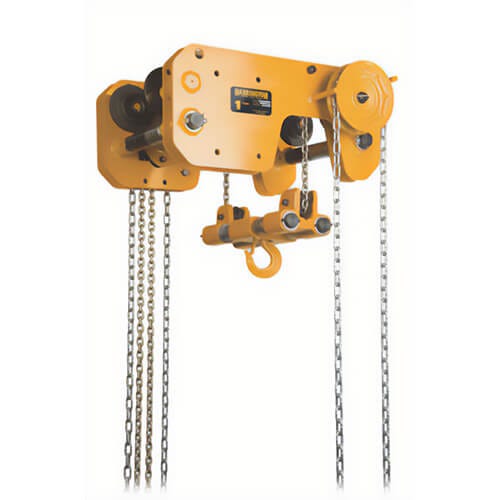

Harrington SHB030-20 Ultra Low Headroom Trolley Hoist, 3 ton Load, 20 ft Lifting Height, 6-1/2 in Between Hooks, 1.7 in Hook Opening, 74 lb Rated

Manufacturer #SHB030-20
Call for availability
List Price: $8,051.64
$8,051.64
Quantity Break Pricing may apply in the cart
HSI
SHB030-20-11188
Product Overview
Harrington SHB trolley hoists combine our industrial grade CB hand chain hoist less slip clutch with a unique permanently attached hand geared trolley. This low profile configuration is ideal, for use in limited space applications.

Features
  • 1 ton to 10 ton capacity
  • Ultra-low headroom design for maximum hook travel
  • All-steel construction for hoist durability
  • Cast trolley wheels and steel side plates for heavy-duty applications
  • Flanged trolley wheels allow for smooth travel on both S and W beams
  • Efficient hoist drive train minimizes effort required to operate
  • Maintenance-free sealed trolley ball bearings are lubed-for-life and offer smooth movement with low friction and long life
  • Reliable hoist braking with double enclosed brake cover that keeps out rain, dust and dirt
  • Grade 100 heat-treated manganese alloy load chain resists abrasion and wear
  • Weston brake type

Specifications
More Information
Manufacturer Part Number SHB030-20
Manufacturer Harrington Hoists, Inc
Brand Name HARRINGTON
Length (in) 35
Width (in) 30
Height (in) 24
Lifting Height 20 ft
Load Capacity 3 ton
Hook Opening 1.7 in
Type Ultra Low Headroom
Standard Approvals
  • ASME B30.16 Requirements
Package Quantity 1/Each
