Harrington SHB100-20 Ultra Low Headroom Trolley Hoist, 10 ton Load, 20 ft Lifting Height, 10 in Between Hooks, 2.4 in Hook Opening, 96 lb Rated

Manufacturer #SHB100-20
Call for availability
List Price: $18,075.84
$18,075.84
Quantity Break Pricing may apply in the cart
HSI
SHB100-20-11188
Product Overview

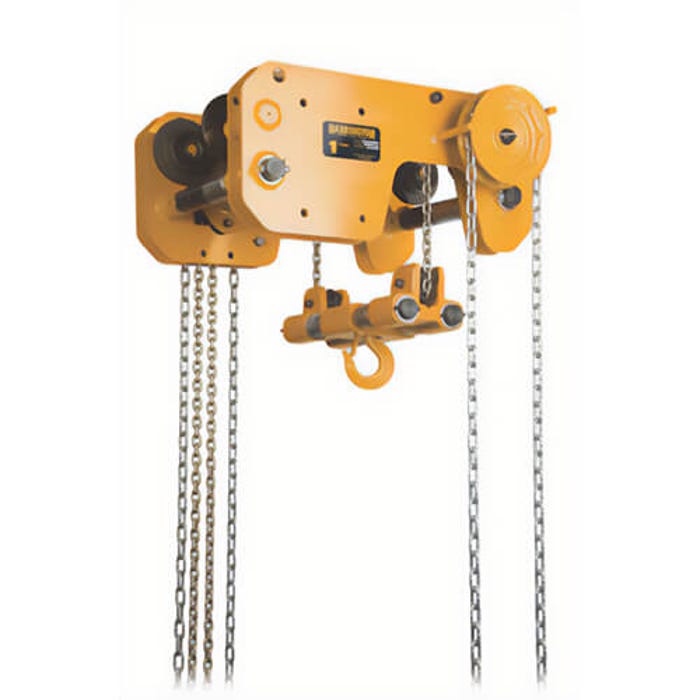

Harrington SHB trolley hoists combine our industrial grade CB hand chain hoist less slip clutch with a unique permanently attached hand geared trolley. This low profile configuration is ideal, for use in limited space applications.

Features
  • 1 ton to 10 ton capacity
  • Ultra-low headroom design for maximum hook travel
  • All-steel construction for hoist durability
  • Cast trolley wheels and steel side plates for heavy-duty applications
  • Flanged trolley wheels allow for smooth travel on both S and W beams
  • Efficient hoist drive train minimizes effort required to operate
  • Maintenance-free sealed trolley ball bearings are lubed-for-life and offer smooth movement with low friction and long life
  • Reliable hoist braking with double enclosed brake cover that keeps out rain, dust and dirt
  • Grade 100 heat-treated manganese alloy load chain resists abrasion and wear
  • Weston brake type

Specifications
More Information
Manufacturer Part Number SHB100-20
Manufacturer Harrington Hoists, Inc
Brand Name HARRINGTON
Length (in) 32.5
Width (in) 26
Height (in) 44.5
Lifting Height 20 ft
Load Capacity 10 ton
Hook Opening 2.4 in
Type Ultra Low Headroom
Standard Approvals
  • ASME B30.16 Requirements
Package Quantity 1/Each
