Mckissick® 1035045 Terminator™ Wedge Socket With Wedge Nad Pin, 1 In, Steel, Painted, For Use With All Wire Rope

Manufacturer # 1035045
In stock
$0.00
$463.00
HSI
FIT11896
Mckissick® 1035045 Terminator™ Wedge Socket With Wedge Nad Pin, 1 In, Steel, Painted, For Use With All Wire Rope is available to buy in increments of 1
DESCRIPTION

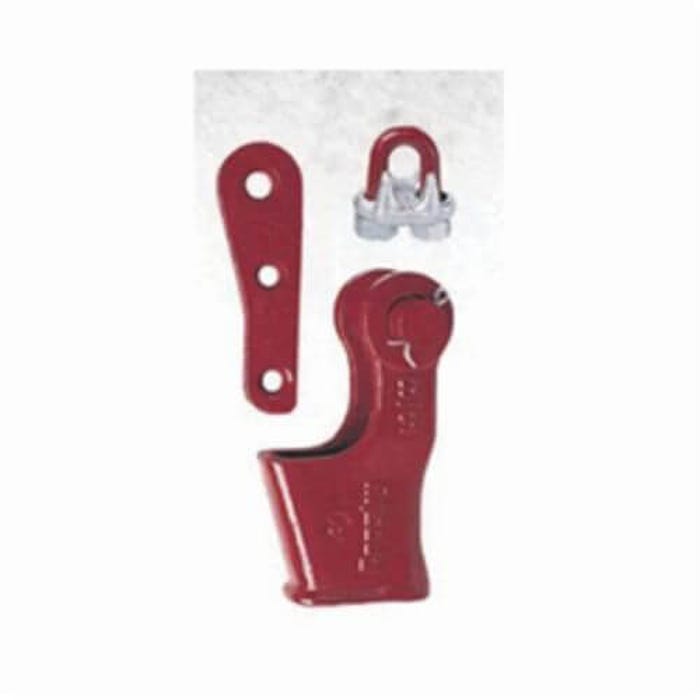

Mckissick® Wedge Socket, Series: Terminator™, 1 In Wire Rope Dia, Steel, Painted, For Use With: All Wire Rope
Features
  • Basket is cast steel and individually magnetic particle inspected
  • Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets
  • Secures the tail or dead end of the wire rope to the wedge, thus eliminates loss or punch out of the wedge
  • eliminates the need for an extra piece of rope and is easily installed
  • TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue
  • The tail, which is secured by the base of the clip and the wedge, is left undeformed and available for reuse
  • Incorporates Crosbys patented QUIC-CHECK® go and No-Go feature cast into the wedge. the proper size rope is determined when the following criteria are met
  • Utilizes standard Crosby® Red-U-Bolt® wire rope clip
PRODUCT SPECIFICATIONS
More Information
Weight (Lb.) 30.7500
Standard Approvals ASME B30.26|ABS 2007 Steel Vessel Rules 1-1-17.7|EN 13411-6|2008|RR-S-550E
Manufacturer Part Number 1035045
Brand Name MCKISSICK®
Weight 30.75 lb
Country of Origin US
Manufacturer Crosby Group
Series Terminator™
Material Steel
Finish Painted
Wire Rope Diameter 1 in
Suitable For Use With All Wire Rope
