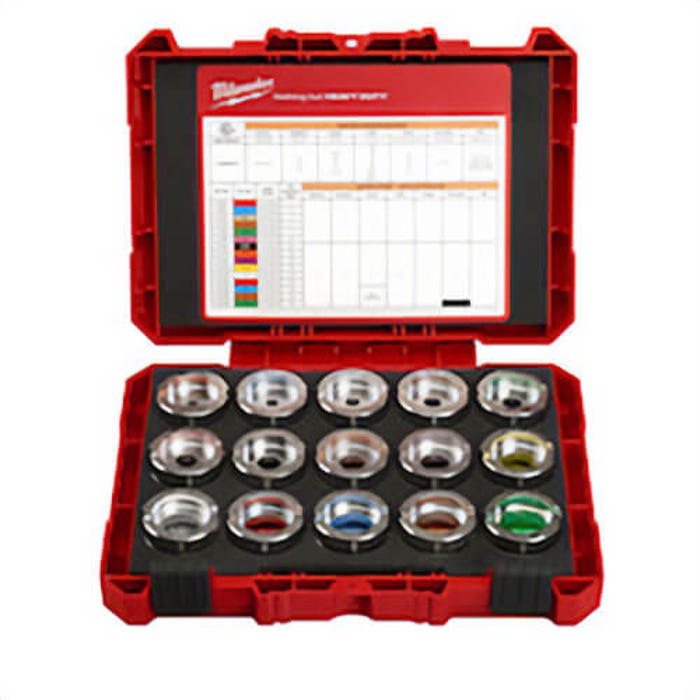

Milwaukee® 49-16-KITC M18™ Force Logic™ U-Style Crimping Tool Die Kit, 15 pc, Copper, 8 AWG to 600 kcmil, 6 ton Capacity
Manufacturer #49-16-KITC
Call for availability
$999.00
$999.00
Quantity Break Pricing may apply in the cart
HSI
49-16-KITC-11961
UPC #:045242339372
Milwaukee® 49-16-KITC M18™ Force Logic™ U-Style Crimping Tool Die Kit, 15 pc, Copper, 8 AWG to 600 kcmil, 6 ton Capacity is available to buy in increments of 1
Product Overview
The M18™ Force Logic™ 600 kcmil crimper is the most accurate way to crimp producing cULus classified crimps according to the UL 486A-B classification standards for #8 to 600 kcmil Cu and #8 to 350 kcmil dual rated Anderson, Blackburn®, Burndy, Ilsco, Panduit, Penn-Union® and Thomas and Betts® Connectors. Utilizing Milwaukee® U-style dies that feature vivid wire size markings, industry standard color markings and imprint wire size onto the connector after crimp completion, commercial electricians benefit from its ease of use and easy inspection. For use with 2679-20, M18™ Force Logic™ 600 kcmil crimper and 49-16-U000 M18™ 600 kcmil U-style jaw crimping jaw.
Features
- 100% Inspected for critical dimensions & serialized: ensures crimp quality
- Wire size marked on each die: easy identification
- Vivid color coding: easiest selection
- Die size pressed into connector, matches wire size: eliminates cross referencing
- Stainless steel finish: protects against corrosion
Specifications
| Manufacturer Part Number | 49-16-KITC |
|---|---|
| Manufacturer | Milwaukee Tool |
| Brands | MILWAUKEE |
| UPC | 045242339372 |
| Length (in) | 2.25 |
| Width (in) | 4 |
| Height (in) | 2.25 |
| Standard Approvals |
|
| Includes | #8, #6, #4, #2, #1, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil Copper U Dies and Carrying Case |
| Type | U-Style |
| Suitable For Use With | Electrical Wire and Cable Crimping |
| Finish | Stainless Steel |
| Number of Pieces | 15 |
| Material | Copper |
| Package Quantity | 1/Each |
