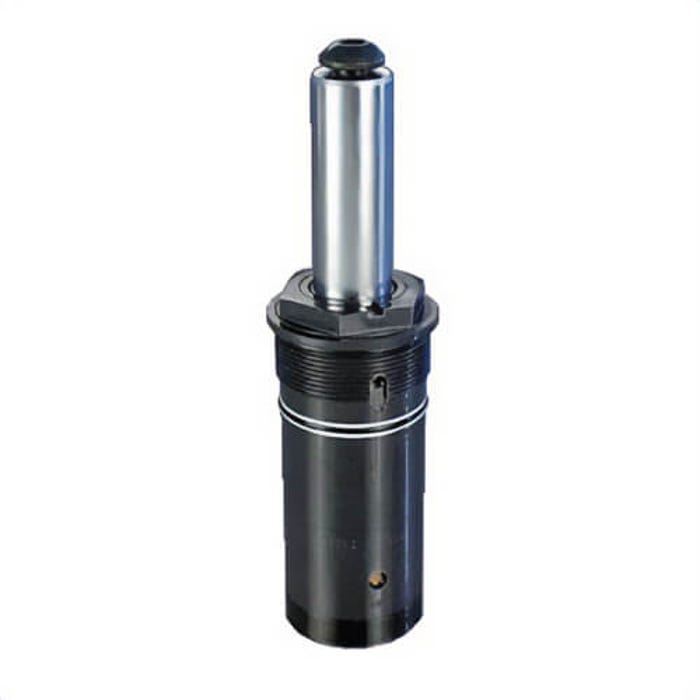

Power Team® Hytec® 100988 Double Acting Cartridge Swing/Pull Clamp, 1-5/8 in L Stroke, 5,000 lb Max Force
Manufacturer #100988
Call for availability
List Price:
$1,461.28
$1,461.28
Quantity Break Pricing may apply in the cart
HSI
100988-12948
UPC #:662536356923
Power Team® Hytec® 100988 Double Acting Cartridge Swing/Pull Clamp, 1-5/8 in L Stroke, 5,000 lb Max Force is available to buy in increments of 1
Product Overview
Power Team® Hytec® swing/pull clamp, Double-Acting cartridge, 1-5/8 in stroke length, 5,000 lb maximum force, left swivel direction, 0.125 to 0.87 in port, 1.178 in² effective area clamped, 2.405 in² effective area unclamped, 1.914 in³ oil capacity clamped, 3.908 in³ oil capacity unclamped, 5/8-11 UNC body thread, 5,000 psi pressure, polished chrome, 2.372 in dia x 9.856 in H dimensions. Small footprint minimizes acreage on fixture. Low profile reduces overall fixture height. Manifold mounting eliminates exposed plumbing, reducing chip build-up on fixture. Live roller design provides industry's most reliable swing/pull mechanism. Piston/cam combination provides solid path for clamping action. Typical ball and groove mechanism has higher potential for clogging and for damage from mis-aligned work pieces. Simple cavity design enables faster fixture building. Special rod wiper seal protects internal clamp components. Unique drainage system channels contaminants away from clamp. Corrosion-resistant construction. Heat treated, chrome plated piston rod. Unique live roller swing mechanism for increased service life. Power-Tech® treated body and hardened cam for long wear and corrosion resistance.
Specifications
Manufacturer Part Number | 100988 |
---|---|
Manufacturer | Hydraulic Technologies |
Brand Name | POWER TEAM |
UPC | 662536356923 |
Product Type | Replacement Part |
Package Quantity | 1/Each |
