Power Team® RB20013S Roll-Bed® Hydraulic Press, 200 ton, 51-1/4 in Base Length, 68-1/4 in Base Width

Manufacturer #RB20013S

Call for availability

Be the first to review this product

List Price: $55,411.15

$55,411.15

Quantity Break Pricing may apply in the cart

HSI

RB20013S-12948

UPC #:662536002721

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

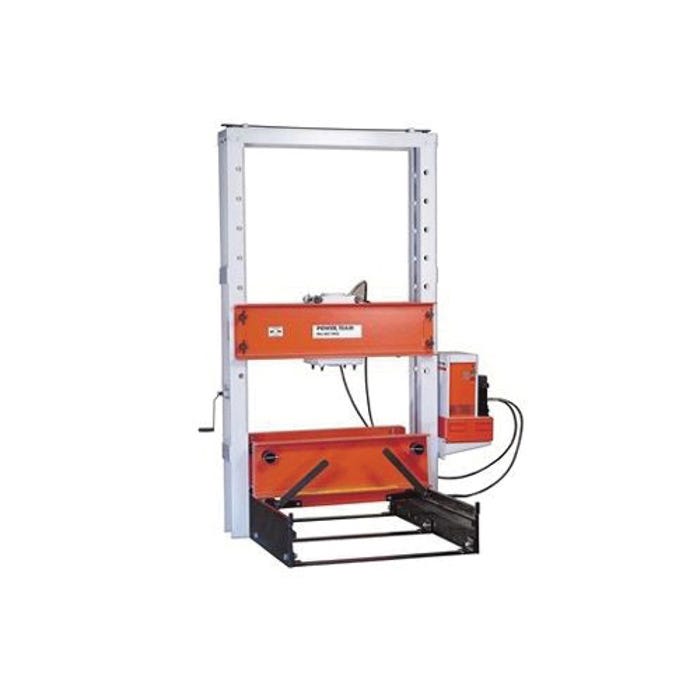

Power Team® Roll-Bed® hydraulic press, 200 ton capacity, 51-1/4 in base length, 68-1/4 in base width, 123-3/4 in height, electric pump, 13-1/8 in stroke length, 10,000 psi pressure, H frame, 68-1/4 x 63-1/2 in working space, 18 in/min advance, 2.9 in/min pressing speed.

Features

Adjustable lower bed width for secure balancing and centering of heavy jobs
Loosen adjusting bolts to adjust bed from 4 in to more than 27 in
Movable workhead for off-center pressing jobs, workhead moves on bearings across upper bolster
Presses can be used at full capacity, regardless of where workhead is placed
Lifting mechanism simply turn crank handle to raise or lower upper bolster
Screw mechanism raises or lowers both sides evenly (a heavy duty 1/2 in drill motor can replace handle for automatic adjustment)
Four locking pins hold bolster in place for pressing

Specifications

More Information
Manufacturer Part Number	RB20013S
Manufacturer	Hydraulic Technologies
Brand Name	POWER TEAM
UPC	662536002721
Length (in)	68.25
Width (in)	51.25
Height (in)	123.75
Capacity	200 ton
Stroke Length	13-1/8 in
Speed	18 in/min Advance, 2.9 in/min Pressing
Base Length	51-1/4 in
Base Width	68-1/4 in
Package Quantity	1/Each
