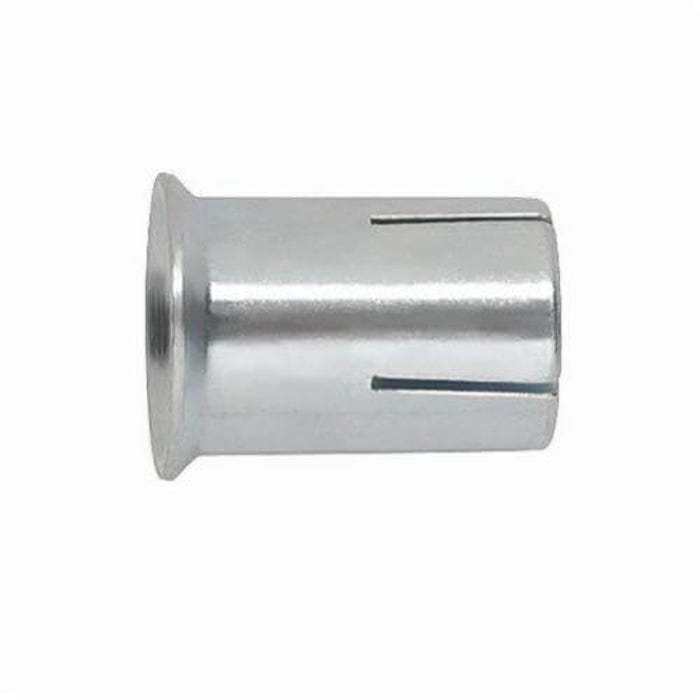

Powers™ 6322 Dropin™ Lipped Mini Threaded Drop-In Anchor, 3/8 in, 1/2 in Drill, Carbon Steel, 3/4 in D Min Embedment

Manufacturer # 06322-PWR
In stock
$0.00
$0.42
HSI
ANC28423
UPC #:075352063225
DESCRIPTION
Powers® Drop-In Anchor, Lipped Mini Threaded, Series: Dropin™, 3/8 In Bolt/Rod, 3/8-16, Carbon Steel, 1/2 In Drill, 3/4 In Minimum Embedment Depth, Unc, 3/4 In Overall Length, 2700 Lb At 3000 Psi/4220 Lb At 4000 Psi/6000 Psi For Concrete Shear Strength, 1980 Lb At 3000 Psi, 2120 Lb At 4000 Psi, 2270 Lb At 6000 Psi For Normal Weight Concrete Tensile, Zinc Plated

Powers™ Drop-In Anchor, Lipped Mini Threaded, Series: Dropin™, 3/8 in Bolt/Rod, 3/8-16, Carbon Steel, 1/2 in Drill, 3/4 in Minimum Embedment Depth, Unc, 3/4 in Overall Length, 2700 lb at 3000 Psi/4220 lb at 4000 Psi/6000 Psi For Concrete Shear Strength, 1980 lb at 3000 Psi, 2120 lb at 4000 Psi, 2270 lb at 6000 Psi For Normal Weight Concrete Tensile, Zinc Plated

The Mini Dropin is a Carbon Steel Machine Bolt Anchor For Use in Shallow Embedment Applications. in Addition to Solid Concrete and Precast Hollow Core Plank, It Can Be Used in Post-Tensioned Concrete Slabs and Concrete Pours Over Steel Deck.

Features
  • Internally threaded anchor for easy bolt removability and service work
  • Lip provides flush installation and consistent embedment
  • Ideal for precast hollow core plank and post-tensioned concrete slabs
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number 06322-PWR
Manufacturer Stanley Black & Decker
Brand Name POWERS™
UPC 075352063225
Series Dropin™
Minimum Embedment Depth 3/4 in
Shear Strength 2700 lb at 3000 psi/4220 lb at 4000 psi/6000 psi for Concrete
Bolt/Rod Size 3/8 in
Thread Type UNC
Thread Size 3/8-16
Tensile Strength 1980 lb at 3000 psi, 2120 lb at 4000 psi, 2270 lb at 6000 psi for Normal Weight Concrete
Type Lipped Mini Threaded
Material Carbon Steel
Drill Size 1/2 in
Write Your Own Review
You're reviewing:Powers™ 6322 Dropin™ Lipped Mini Threaded Drop-In Anchor, 3/8 in, 1/2 in Drill, Carbon Steel, 3/4 in D Min Embedment
Catalog (813.04 kB)
