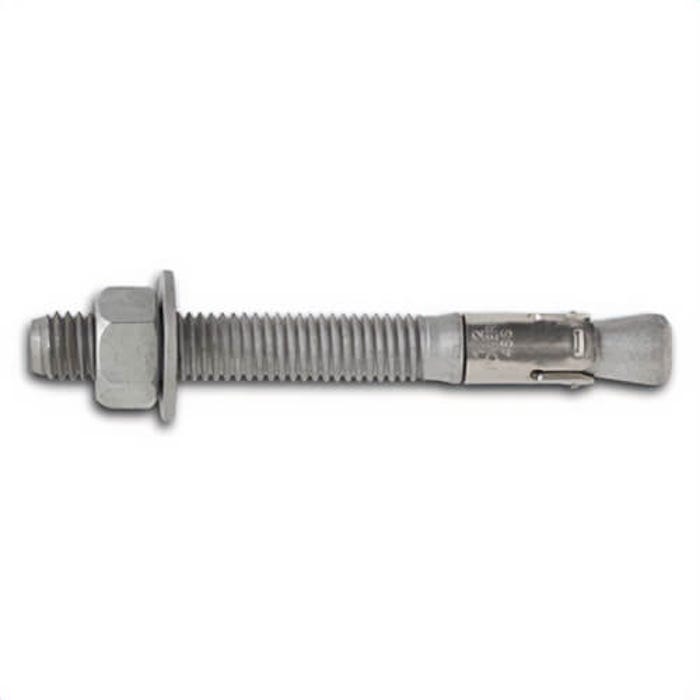

DeWALT® Power-Stud® Powers® 7742HD5-PWR Expansion Wedge Anchor, 3/4 in dia, 5-1/2 in OAL, 3 in L Thread, Carbon Steel

Manufacturer #7742HD5-PWR

Call for availability

Be the first to review this product

List Price: $6.85

$6.85

Quantity Break Pricing may apply in the cart

HSI

7742HD5-PWR-12419

UPC #:075352869575

DeWALT® Power-Stud® Powers® 7742HD5-PWR Expansion Wedge Anchor, 3/4 in dia, 5-1/2 in OAL, 3 in L Thread, Carbon Steel is available to buy in increments of 20

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Powers™ Power-Stud® HD5 wedge anchor, expansion, 3/4 in dia, 5-1/2 in OAL, 3 in thread length, stainless steel/carbon steel, hot dipped galvanized, 3-3/8 in minimum embedment depth, 3/4 in drill, 3/4-10 thread, hex nut head, UNC thread, 2-1/8 in maximum work thickness. The Power-Stud® anchor is a one pc fully threaded, wedge style anchor available in carbon steel and stainless steel. The drill bit dia needed for proper installation is the same nominal size as the anchor diameter. Hot dipped galvanized Power-Stud® anchors are manufactured from carbon steel which have a impact-resistant galvanized coating (zinc) in accordance with ASTM a 153 class C or D specification.

Features

Consistent performance in high and low strength concrete
Anchor can be installed through standard fixture holes
Nominal drill bit diameter same as Anchor diameter
Length ID code and identifying marking stamped on head of each Anchor
Ultimate load capacity: 7080 lb tensile strength when embedded in 2500 psi, 7750 lb tensile strength when embedded in 3000 psi, 8955 lb tensile strength when embedded in 4000 psi, 12125 lb tensile strength when embedded in 6000 psi and 14000 lb tensile strength when embedded in 8000 psi compressive strength concrete
Ultimate load capacity - 11570 lb shear strength when embedded in 2500/3000/4000/6000/8000 psi compressive strength concrete
Allowable load capacity - 1770 lb tensile strength when embedded in 2500 psi, 1940 lb tensile strength when embedded in 3000 psi, 2240 lb tensile strength when embedded in 4000 psi, 3030 lb tensile strength when embedded in 6000 psi and 3500 lb tensile strength when embedded in 8000 psi compressive strength concrete
Allowable load capacity - 2895 lb shear strength when embedded in 2500/3000/4000/6000/8000 psi compressive strength concrete
Ultimate load capacity - 5660 lb 4 in minimum edge distance and 5660 lb 12 in minimum edge distance compressive strength concrete in grout-filled concrete masonry
Ultimate load capacity - 8115 lb 4 in minimum edge distance and 9360 lb 12 in minimum edge distance compressive strength concrete in grout-filled concrete masonry
Allowable load capacity - 1130 lb 4 in and 12 in minimum edge distance compressive strength concrete in grout-filled concrete masonry
Allowable load capacity - 1625 lb 4 in minimum edge distance and 1870 lb 12 in minimum edge distance compressive strength concrete in grout-filled concrete masonry

Specifications

More Information
Manufacturer Part Number	7742HD5-PWR
Manufacturer	Stanley Black & Decker
Brand Name	DEWALT
UPC	075352869575
Length (in)	8.5
Width (in)	5.75
Height (in)	3.75
Standard Approvals	ASTM A563 Grade A ASTM F844 ANSI B18.22.2 ASTM A153 Class C or D
Includes	Nut and Washer
Package Quantity	20/Each
