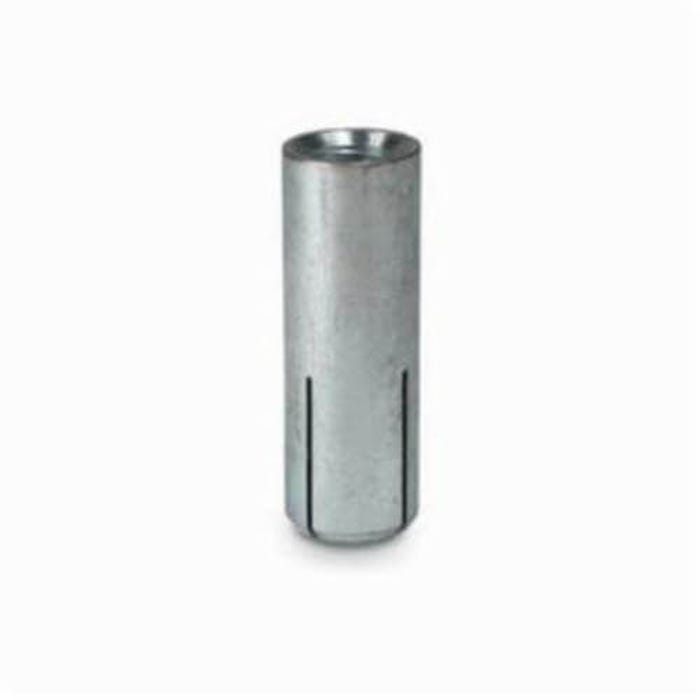

Simpson Strong-Tie® Diab37 Threaded Drop-In Anchor, 3/8 In, 1/2 In Drill, Carbon Steel, 1-9/16 In D Min Embedment

Manufacturer # DIAB37
In stock
$0.00
$0.41
HSI
ANC60900
UPC #:707392339243
DESCRIPTION
Simpson Strong-Tie® Drop-In Anchor, Threaded, 3/8 In Bolt/Rod, 3/8-16, Carbon Steel, 1/2 In Drill, 1-9/16 In Minimum Embedment Depth, 5/8 In Thread Length, 1-9/16 In Overall Length, 1195 Lb At 2500 Psi/4000 Psi For Concrete Shear Strength, 740 Lb At 2500 Psi, 980 Lb At 4000 Psi For Concrete Tensile, Zinc Plated
Simpson Strong-Tie Introduces A New, Redesigned Drop-In Anchor (Diab) That Provides Easier Installation Into Base Materials. Improved Geometry In The Preassembled Expansion Plug Improves Setting Capability So The Anchor Installs With 40% Fewer Hammer Strikes Than Previous Versions. These Displacement-Controlled Expansion Anchors Are Easily Set By Driving The Plug Toward The Bottom Of The Anchor Using Either The Hand- Or Power-Setting Tools. Diab Anchors Feature A Positive-Set Marking Indicator At The Top Of The Anchor, Helping You See More Clearly When Proper Installation Has Taken Place. Use A Simpson Strong-Tie Fixed-Depth Stop Bit To Take The Guesswork Out Of Drilling To The Correct Depth. The Fluted Design Of The Tip Draws Debris Away From The Hole During Drilling, Allowing For A Cleaner Installation.
Features
  • New design offers easier installation than previous drop-in anchor design - sets with 40% fewer hammer hits
  • Positive-set marking system indicates when anchor is properly set
  • Lipped drop-in version available for flush installation
  • Hand- and power setting tools available for fast, easy and economical installation
  • Fixed depth stop bit helps you drill to the correct depth every time
  • The allowable loads are based on a safety factor of 4
  • The minimum concrete thickness is 1-1/2 times the embedment depth
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number DIAB37
Manufacturer Simpson Strong-Tie
Brand Name SIMPSON STRONG-TIE®
UPC 707392339243
Package Quantity 250/CT
Minimum Embedment Depth 1-9/16 in
Shear Strength 1195 lb at 2500 psi/4000 psi for Concrete
Bolt/Rod Size 3/8 in
Thread Length 5/8 in
Thread Size 3/8-16
Tensile Strength 740 lb at 2500 psi, 980 lb at 4000 psi for Concrete
Type Threaded
Material Carbon Steel
Drill Size 1/2 in
