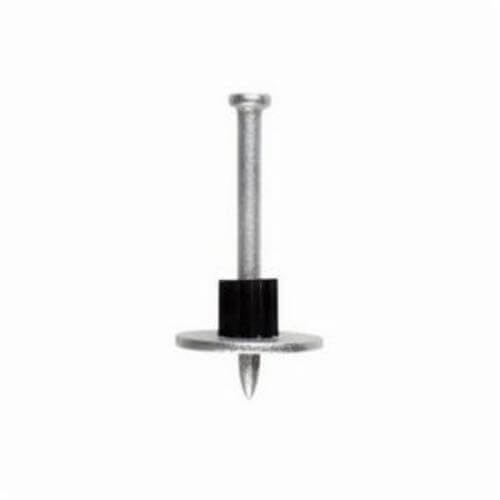

Simpson Strong-TieĀ® PDPAWL-125 Drive Pin with Carbon Steel Washer, 0.157 in dia x 1-1/4 in L Shank, 0.3 in Head

Manufacturer #PDPAWL-125
Call for availability
List Price: $0.20
$0.20
Quantity Break Pricing may apply in the cart
HSI
ANC51081
UPC #:707392530008
Simpson Strong-TieĀ® PDPAWL-125 Drive Pin with Carbon Steel Washer, 0.157 in dia x 1-1/4 in L Shank, 0.3 in Head is available to buy in increments of 100
Product Overview
Simpson Strong-TieĀ® Drive Pin, series: PDPAWL, 1-1/4 in Shank Length, 0.3 in Head dia, 0.157 in Shank dia, 3/4 in Washer dia, For Use With: PTP-27L, PTP-27S, PT-27, PT-22P, PT-22A, PT-22Gs and PT-22Ha Powder Actuated Tools, Steel Fastener, Electro-Plated Zinc, Material Fastened To: Concrete, Concrete Filled Deck and Masonry. The PDPA Series of Powder-Actuated Fasteners Feature 0.3 in dia Heads and a 0.157 in dia Shank. Available in a Variety of Finishes and Styles, These Pins are Compatible with Simpson Strong-TieĀ® Powder-Actuated Tool Systems as Well as Other Common Tools.

Features
  • Manufactured with tight tolerances for superior performance
  • Smooth shank
  • 0.07 in Thick washer
  • 0.354 in L maximum point
  • Compatible with 721, D-60, U-2000, system 1, system 3 and most other low velocity tools
  • 53 to 56 Rockwell "C" core hardness

Specifications
More Information
Google Product Category 7270
Manufacturer Part Number PDPAWL-125
Manufacturer Simpson Strong-Tie
Brand Name SIMPSON STRONG-TIE
UPC 707392530008
Series PDPAW
Standard Approvals
  • ICC-ES ESR-2138
Suitable For Use With PTP-27L, PTP-27S, PT-27, PT-22P, PT-22A, PT-22GS and PT-22HA Powder Actuated Tools
Head Diameter 0.3 in
Shank Length 1-1/4 in
Washer Diameter 3/4 in
Shank Diameter 0.157 in
Package Quantity 100/Each
