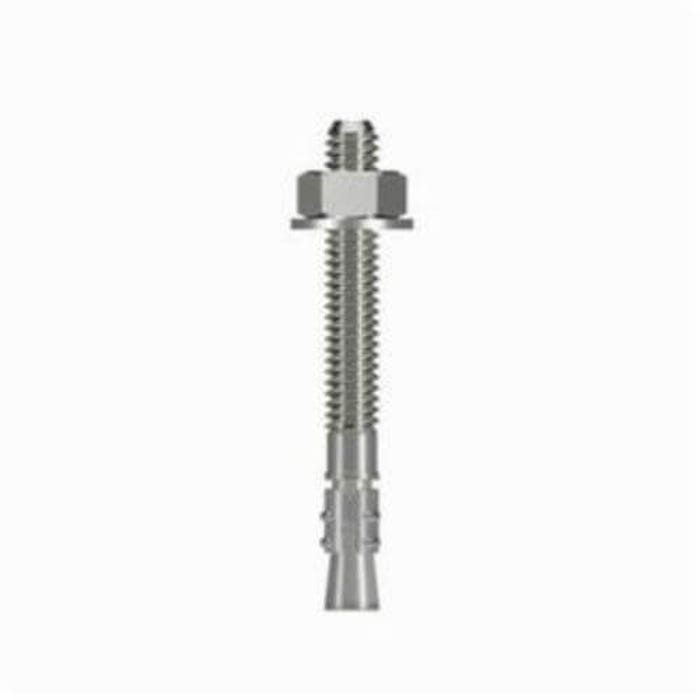

Simpson Strong-Tie® STB2-252144SS Strong-Bolt® 2 Wedge Anchor, 1/4 in dia, 2-1/4 in OAL, 1-7/16 in L Thread, 304 SS

Manufacturer #STB2-252144SS

Call for availability

Be the first to review this product

List Price: $1.44

$1.44

Quantity Break Pricing may apply in the cart

HSI

ANC77280

UPC #:707392632900

Simpson Strong-Tie® STB2-252144SS Strong-Bolt® 2 Wedge Anchor, 1/4 in dia, 2-1/4 in OAL, 1-7/16 in L Thread, 304 SS is available to buy in increments of 100

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simpson Strong-Tie® wedge anchor, series: Strong-Bolt® 2, 1/4 in dia, 2-1/4 in OAL, 1-7/16 in Thread Length, 304 Stainless Steel, Zinc Plated, 1-3/4 in Minimum Embedment Depth, 1/4 in Drill, 7/16 in Head, 3-1/4 in Maximum Work Thickness, 120000 psi TensileThe Simpson Strong-Tie® Strong-Bolt 2 wedge Anchor is Now Available in Type 304 Stainless Steel in Standard Sizes. Previously Available Only in Type 316 and Carbon Steel, The Additional Product Offering Allows You to Choose The Best Material Solution For Your Job. The Strong-Bolt 2 wedge Anchor is an Optimal Choice For Cracked and Uncracked Concrete. Following Rigorous Testing According to Icc-Es Acceptance Criteria, The Strong-Bolt 2 wedge Anchor Received Classification as a Category 1 anchor, Which is The Highest Attainable Category For Performance in Cracked Concrete Under Static and Seismic Loading. It is Code Listed by Icc-Es Under The 2015 IBC and Aci 318 Strength Design Requirements For Post-Installed Anchors in Cracked and Uncracked Concrete.

Features

Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
Stainless steel stud with stainless steel clip
304 stainless steel nut/washer
316 stainless steel clip
5/16 in dia baseplate clearance hole
4 ft-lb installation torque
1-7/8 in D minimum hole
96000 psi yield strength
5/16 in minimum fixture hole

Specifications

More Information
Manufacturer Part Number	STB2-252144SS
Manufacturer	Simpson Strong-Tie
Brand Name	SIMPSON STRONG-TIE
UPC	707392632900
Length (in)	2.25
Height (in)	0.25
Diameter	1/4 in
Series	Strong-Bolt® 2
Head Size	7/16 in
Thread Length	1-7/16 in
Material	304 Stainless Steel
Standard Approvals	ASTM B633 Class SC 1 Type III Florida Statewide Product FL15731 City of Los Angeles RR 25891 UL File Ex3605 FM 3043442 3047639
Package Quantity	100/Each
