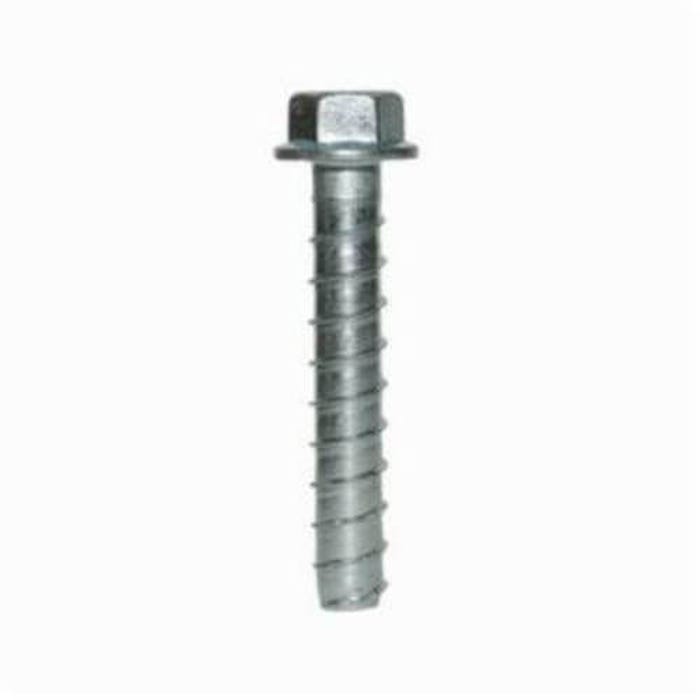

Simpson Strong-Tie® THD75500H Heavy Duty Screw Anchor, 3/4 in dia, 5 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment
Manufacturer #THD75500H
Call for availability
List Price:
$8.48
$8.48
Quantity Break Pricing may apply in the cart
HSI
ANC78053
UPC #:707392637509
Simpson Strong-Tie® THD75500H Heavy Duty Screw Anchor, 3/4 in dia, 5 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment is available to buy in increments of 5
Product Overview
Simpson Strong-Tie® Screw anchor, Heavy Duty, series: Titen HD®, 3/4 in dia, 5 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Concrete and Masonry, 1-1/8 in Head, 10 in Maximum Work Thickness, 16840 lb Shear Strength, 45540 lb Tensile. The Original High-Strength Screw Anchor For Use in Cracked and Uncracked Concrete, as Well as Uncracked Masonry. The Titen HD® Offers Low Installation Torque and Outstanding Performance. Designed and Tested in Dry, Interior, Non-Corrosive Environments or Temporary Outdoor Applications, The Titen HD® Demonstrates Industry-Leading Performance Even in Seismic Conditions.
Features
- Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional size
- Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
- Hex washer head requires no separate washer and provides a clean installed appearance
- Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
- 7/8 in dia baseplate clearance hole
- 150 ft-lb maximum installation torque
- 6 in D minimum hole
- 1-3/4 in minimum edge distance
- 3 in minimum spacing
- 97000 psi yield strength
Specifications
| Manufacturer Part Number | THD75500H |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Brand Name | SIMPSON STRONG-TIE |
| UPC | 707392637509 |
| Length (in) | 5 |
| Height (in) | 0.75 |
| Series | Titen HD® |
| Standard Approvals |
|
| Type | Heavy Duty |
| Head Size | 1-1/8 in |
| Diameter | 3/4 in |
| Material | Carbon Steel |
| Package Quantity | 5/Each |
