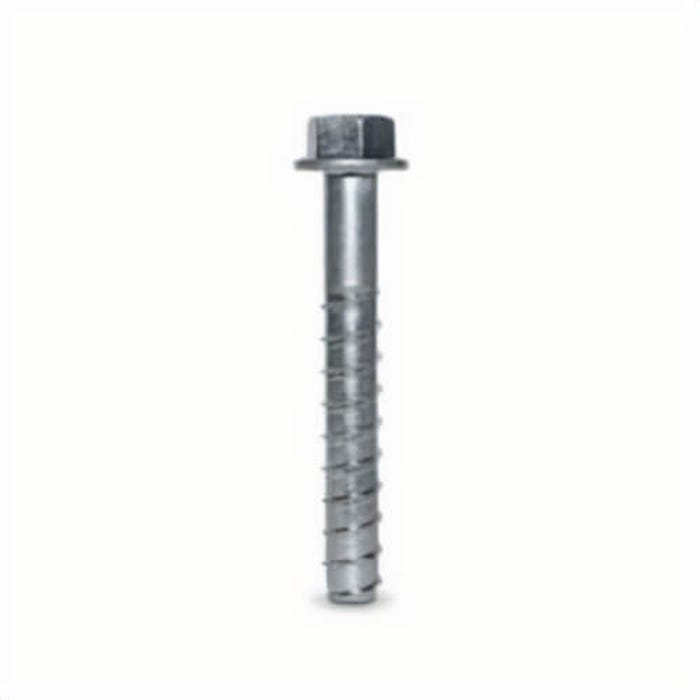

Simpson Strong-Tie® THDT75600H Heavy Duty Screw Anchor, 3/4 in dia, 6 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment

SIMPSON STRONG-TIE

Manufacturer #THDT75600H

Call for availability

Be the first to review this product

$12.56

Quantity Break Pricing may apply in the cart

HSI

THDT75600H-12864

UPC #:707392253303

Simpson Strong-Tie® THDT75600H Heavy Duty Screw Anchor, 3/4 in dia, 6 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 3/4 in dia, 6 in Overall Length, Hex Washer Head Drive, Carbon Steel, 5-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 1-1/8 in Head, 10 in Maximum Work Thickness, 16840 lb Shear Strength, 45540 lb Tensile Strength

Features

Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional size
Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
Hex washer head requires no separate washer and provides a clean installed appearance
Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
7/8 in Dia baseplate clearance hole
150 ft-lb maximum installation torque
6 in D minimum hole
1-3/4 in minimum edge distance
3 in minimum spacing
97000 psi yield strength

Specifications

More Information
Manufacturer Part Number	THDT75600H
Manufacturer	Simpson Strong-Tie
Brands	SIMPSON STRONG-TIE
UPC	707392253303
Length (in)	6
Height (in)	0.75
Series	Titen HD®
Package Quantity	1/Each
