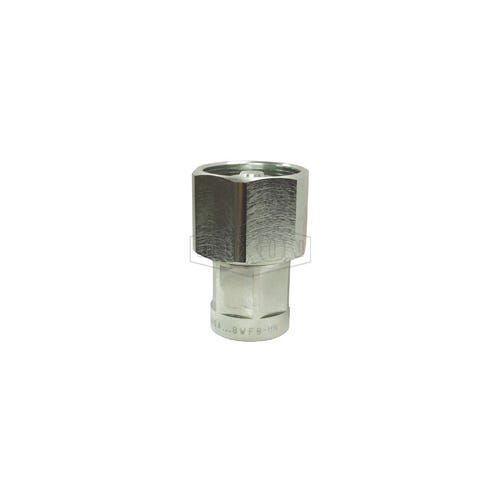

Dixon® 8WF8-HN DQC W Wingstyle Interchange Hex-Nut Female Coupler, 1-11-1/2 Nominal, Female NPTF, Steel

Manufacturer #8WF8-HN
Call for availability
List Price: $100.25
$100.25
Quantity Break Pricing may apply in the cart
HSI
8WF8-HN-10639
Dixon® 8WF8-HN DQC W Wingstyle Interchange Hex-Nut Female Coupler, 1-11-1/2 Nominal, Female NPTF, Steel is available to buy in increments of 1
Product Overview
Dixon® Wingstyle Interchange Hex-Nut Female Coupler, Series: DQC W, 1-11-1/2 Nominal, Female NPTF, 1-15/32 in Hex, 3.33 in Length, 4000 psi, -40 to 250°F, Steel, Polished Chrome, 2.33 in OD

Features
  • Machined components are manufactured using solid bar stock
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using ROHS compliant trivalent chrome
  • Rugged steel wing nut for threaded connect and disconnect operation
  • Nitrile (Buna-N) seals are standard
  • Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection
  • Redundant O-ring on the coupler body will engage nipple for secondary sealing support
  • Couplings have a TPC-EPT back-up ring on the valve sleeve to extend service life
  • 1 in body
  • Compatible with Aeroquip 5100-series, Parker 6100-series, Snap-Tite 78-series, Faster series-FB, Safeway S51-series
  • Widely used on dump trailer wet-line hydraulic systems and oil field equipment
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number 8WF8-HN
Manufacturer Dixon Valve & Coupling
Brand Name DIXON
Length (in) 3.33
Height (in) 2.33
Standard Approvals
  • RoHS Compliant
Nominal Size 1 in - 11-1/2
Hex Size 1-15/32 in
Finish Polished Chrome
Material Steel
Temperature Rating -40 to 250°F
Package Quantity 1/Each
