Klein® CL320 HVAC Digital Clamp Meter, 600 VAC/VDC, 400 A AC, 40 MOhm, 10 Hz to 1 MHz, 1.61 in Jaw, Backlit LCD Display

Manufacturer #CL320
Call for availability
$99.98
$99.98
Quantity Break Pricing may apply in the cart
HSI
CL320-11611
UPC #:092644692864
Klein® CL320 HVAC Digital Clamp Meter, 600 VAC/VDC, 400 A AC, 40 MOhm, 10 Hz to 1 MHz, 1.61 in Jaw, Backlit LCD Display is available to buy in increments of 1
Product Overview
Klein® HVAC Digital ClAMP Meter, 600 VAC/VDC, 400 A AC, 40 MOhm Electrical Rating, 10 Hz to 1 MHz Frequency, 1.61 in Jaw, 4000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, -40 to 1832°F Operating, 8.45 in L x 1.51 in W x 3.51 in H Dimensions, ABSKlein® CL320 clAMP meter is an automatically ranging true root mean square (TRMS) digital clAMP meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and tests diodes via test-leads and temperature via a thermocouple probe. Features include auto range to improve efficiency and speed when making measurements, diode test to troubleshoot malfunctioning diodes, max/min to understand the variability from average of an electrical property being measured and DC microamps measurements when working with flame sensors.

Features
  • Clamp meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test and continuity via test leads and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for 69445 or 69417 meter for hands free operation
  • Measures temperature with a K type thermocouple probe
  • Auto range, data hold and maximum/minimum value
  • Auto power off after 10 min to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 9.9 ft drop
  • CAT III 600 V, class 2, double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light industrial locations
  • HVAC Applications
  • DC polarity indicator included
  • 200 µA DC micro amp
  • Capacitance: 4000 µF
  • 10 Hz -1 MHz frequency rating
  • Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, dc micro-amp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple

Specifications
More Information
Manufacturer Part Number CL320
Manufacturer Klein Tools
Brands KLEIN TOOLS
UPC 092644692864
Length (in) 8.45
Width (in) 1.51
Height (in) 3.51
Standard Approvals
  • CATIII 600V
  • Class 2
  • Double Insulation Safety Rating
  • CE Certified

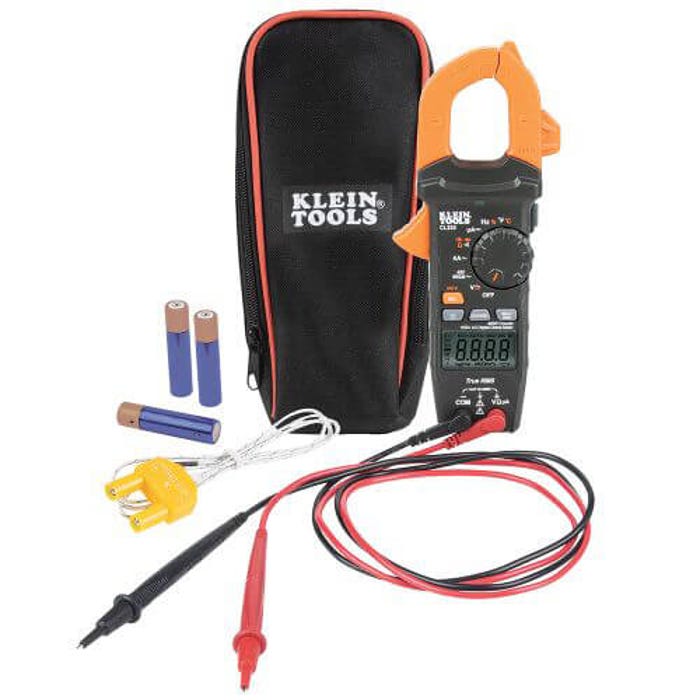

Includes Carrying Case, Instructions, Test Lead and (3) AAA Batteries
Type HVAC TRMS Clamp
Warranty Limited
Voltage 600V AC/DC
Material ABS/Electronics
Temperature Rating -40 to 1832°F (-40 to 1000°C)
Current 400 A AC
Drop Protection 6.6 ft
Package Quantity 1/Each
