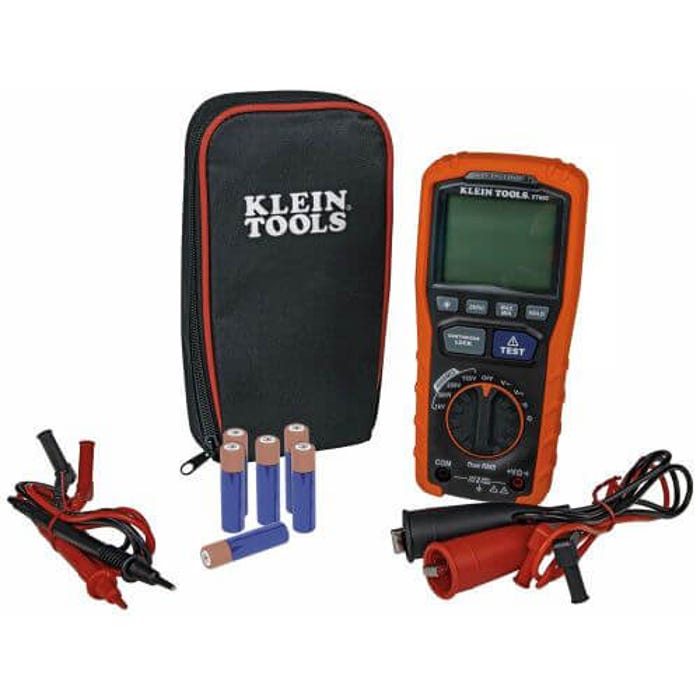

Klein® ET600 Digital Insulation Resistance Tester, 1000V AC/DC, 4000 Count LCD Display, CAT IV 600 V/CAT III 1000 V

KLEIN TOOLS

Manufacturer #ET600

Call for availability

Be the first to review this product

$199.97

Quantity Break Pricing may apply in the cart

HSI

ET600-11611

UPC #:092644692420

Klein® ET600 Digital Insulation Resistance Tester, 1000V AC/DC, 4000 Count LCD Display, CAT IV 600 V/CAT III 1000 V is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Klein® Insulation Resistance Tester, Digital, 1000V AC/DC, 1 mA at 1 MOhm, 4000 MOhm at 125/250/500/1000V DC Resistance, LCD Display, Safety Rating: CAT IV 600 V/CAT III 1000 V, Yes Auto Ranging, Auto Power Off, (2) AA Alkaline Batteries Power Source, Button/Switch Interface, IP40 Enclosure, 7.93 in L x 3.59 in W x 2.32 in D Dimensions. The ET600 is a multi-function Megohmmeter capable of producing 125 V, 250 V, 500 V and 1000 V test voltages for insulation resistance measurements up to 4000 MOhm. Also tests AC/DC voltages up to 1000 V with automatic ranging true RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Features

Lock button for insulation resistance testing
Test insulation resistance up to 4000 MOhm at 125/250/500/1000V DC
Warning alarm and high voltage icon for detection of voltage
Measures up to 1000V AC/DC, low resistance and continuity
Automatic ranging true root mean square (TRMS) technology for increased accuracy
Backlit display with bar graph, auto power off, high voltage, max/min and hold icons
Low battery indicator with easily replaceable battery and fuse
Built-in stand and optional magnetic hanger for hands free operation
Installation, troubleshooting, and preventive maintenance of electrical wiring and electrical equipment, measures 1000V AC/DC, resistance, and continuity

Specifications

More Information
Manufacturer Part Number	ET600
Manufacturer	Klein Tools
Brands	KLEIN TOOLS
UPC	092644692420
Length (in)	12.25
Width (in)	3.59
Height (in)	2.32
Standard Approvals	CAT IV 600V/CAT III 1000V EN61557-1 EN61557-2 EN61557-4
Includes	Right Angle Test Lead, CAT III/CAT IV Safety Rated Test Lead, Heavy Duty Alligator Clip Test Leads, (6) AA Batteries, Carrying Case and Instruction Manual
Type	Insulation Resistance Tester
Warranty	Limited
Voltage	125V, 250V, 500V, and 1000V DC; 1000V AC/DC
Material	ABS, Polycarbonate, Electrical Components
Package Quantity	1/Each
