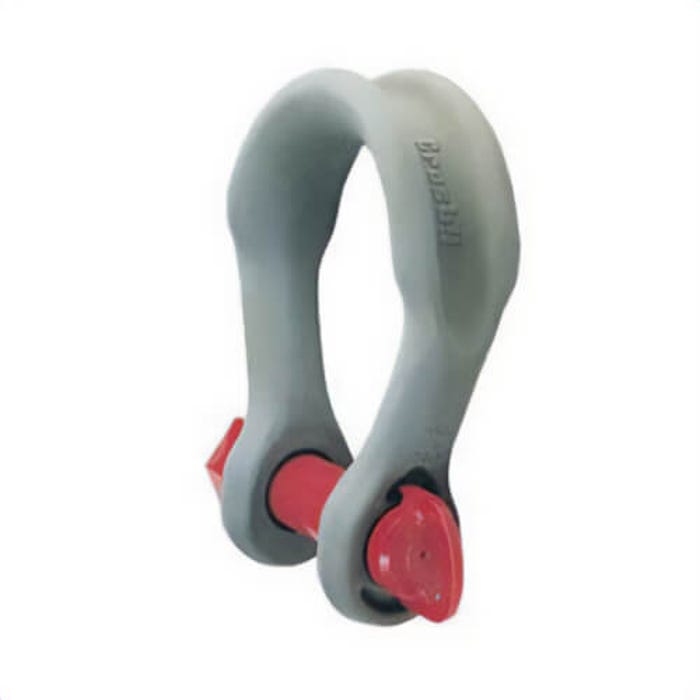

Crosby® 1021575 S-2160 Wide Body Shackle, 30 ton Load, 4.1 in, 1-5/8 in

Manufacturer #1021575
In stock
List Price: $882.00
$882.00
Quantity Break Pricing may apply in the cart
HSI
FIT10881
UPC #:662547215752
Product Overview
Crosby® Wide Body Shackle, series: S-2160, 30 ton Load, 4.1 in Size, 1-5/8 in Pin dia, 6.94 in Inner Length, 2-1/2 in Inner Width, 2.37 in Opening, 3-1/2 in Eye Outer, 11-3/8 in OAL, 7.69 in OAW, Forged Alloy Steel Body, Self-Colored.

Features
  • All ratings are in metric tons, embossed on side of bow
  • Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
  • Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
  • Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
  • Approved for use at -40 to 400°F
  • Bow and bolt are certified to meet charpy impact testing of 42 J min average at -4°F
  • All 2160 shackles are individually proof tested and magnetic particle inspected
  • Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
  • Type approved and certification to DNV rules for certification of lifting appliances and are produced in accordance with DNV MSA requirements
  • Databook is provided that includes required documents serialization/identification, material testing and proof testing
  • Look for the Red Pin® the mark of genuine Crosby® quality

Specifications
More Information
Manufacturer Part Number 1021575
Manufacturer Crosby Group
Brand Name CROSBY
UPC 662547215752
Length (in) 11.375
Width (in) 7.69
Series S-2160
Standard Approvals
  • ABS
  • Lloyds Certified
Working Load Limit (ton) 30
Type Wide Body
Finish Self-Colored
Shackle Size 4-1/10 in
Eye Outer Size (in) 3-1/2
Opening Size 2.37 in
Inner Width 2-1/2 in
Inner Length 6.94 in
Pin Diameter 1-5/8 in
Package Quantity 1/Each
