Klein® MM720 Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance

KLEIN TOOLS

Manufacturer #MM720

Call for availability

Be the first to review this product

$109.76

Quantity Break Pricing may apply in the cart

HSI

MM720-11611

UPC #:092644693762

Klein® MM720 Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Klein Tools Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.

Features

Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhm resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Low battery indicator and easily accessible battery and fuse compartment
Tough meter built to withstand a 6.6 ft (2 m) drop and is rated IP42

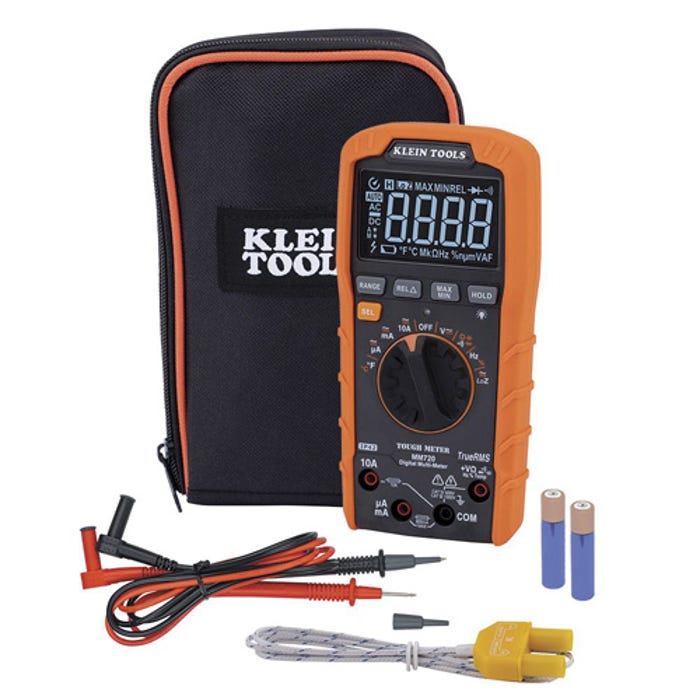

Includes carrying pouch, test leads, thermocouple with adapter, and batteries
CAT IV 600V Safety Rating
For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
High-visibility display with optical sensor, auto-range, min/max/relative, low impedance (LoZ) mode, auto power-off, data hold
IP42 ingress protection
Capacitance: 6000 µF
6,000 Count LCD display
1 Hz - 500 kHz frequency rating
Testing and measuring voltage
Uses 2 x AAA batteries

Specifications

More Information
Manufacturer Part Number	MM720
Manufacturer	Klein Tools
Brands	KLEIN TOOLS
UPC	092644693762
Length (in)	6.94
Width (in)	3.37
Height (in)	3.73
Standard Approvals	CAT IV 600V; CAT III 1000V
Includes	Carrying Case, Test Leads, Thermocouple, Batteries, and User Manual
Type	Digital Multimeter
Warnings	Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged Before each use verify meter operation by measuring a known voltage or current Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed
Overall Length	6.94 in
Battery Type	AAA
Voltage	1000V AC/DC
Material	ABS, Electrical Components
Temperature Rating	-40 to 1832°F (-40 to 1000°C)
Current	10A AC/DC
Drop Protection	6.6 ft (2 m)
Package Quantity	1/Each
