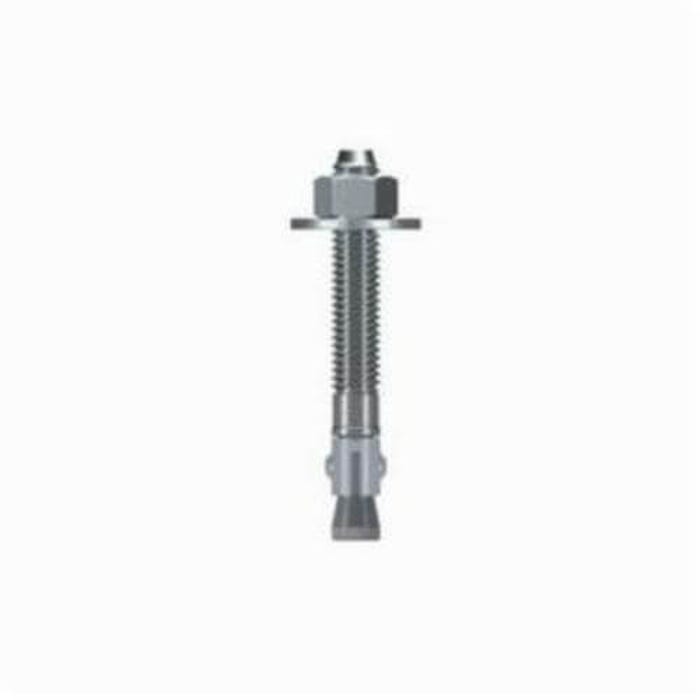

Simpson Strong-Tie® Wa37300 Wedge-All® Wedge Anchor, 3/8 In Dia, 3 In OAL, 1-7/8 In L Thread, Carbon Steel, Zinc Plated

Manufacturer # WA37300
In stock
$0.00
$0.63
HSI
ANC74700
UPC #:044315416903
Simpson Strong-Tie® Wa37300 Wedge-All® Wedge Anchor, 3/8 In Dia, 3 In OAL, 1-7/8 In L Thread, Carbon Steel, Zinc Plated is available to buy in increments of 1
DESCRIPTION
Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 3/8 In Dia, 3 In Overall Length, 1-7/8 In Thread Length, Carbon Steel, Zinc Plated, 1-3/4 In Minimum Embedment Depth, 3/8 In Drill, 9/16 In Head, 570 Lb Shear Strength, 261 Lb Tensile
A Non-Bottom-Bearing, Wedge-Style Expansion Anchor For Use In Solid Concrete Or Grout-Filled Masonry. The Wedge-All® Wedge Anchor Is Available In Carbon Steel With Zinc Or Mechanically Galvanized Coating, As Well As Types 303/304 And Type 316 Stainless Steel. Threaded Studs Are Set By Tightening The Nut To The Specified Torque. The Wedge-All Is Code Listed For Grout-Filled Masonry Applications.
Features
  • Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is chamfered for ease of starting nut
  • Available in a wide range of diameters and lengths
  • Carbon steel ASTM A563 grade A nut
  • The minimum concrete thickness is 1-1/2 times the embedment depth
  • The allowable loads are based on a safety factor of 4
  • 7/16 in minimum fixture hole
  • 30 ft-lb installation torque
  • 1560 lb at 2000 psi/2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
  • 2280 lb at 2000 psi ultimate shear loads and 570 lb at 2000/3000/4000 psi allowable shear load for concrete
  • Anchor body material meets minimum 70000 psi tensile strength
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number WA37300
Manufacturer Simpson Strong-Tie
Brand Name SIMPSON STRONG-TIE®
UPC 044315416903
Series Wedge-All®
Drill Size 3/8 in
Weight (lb) 0.1 lb
Minimum Embedment Depth 1-3/4 in
Standard Approvals Federal Specification A-A-1923A|Type 4|FM 3017082|3031136|3043442|Florida FL15730.8|UL File Ex3605
Shear Strength 570 lb
Overall Length 3 in
Diameter 3/8 in
Finish Zinc Plated
Material Carbon Steel
Head Size 9/16 in
Thread Length 1-7/8 in
Tensile Strength 261 lb
