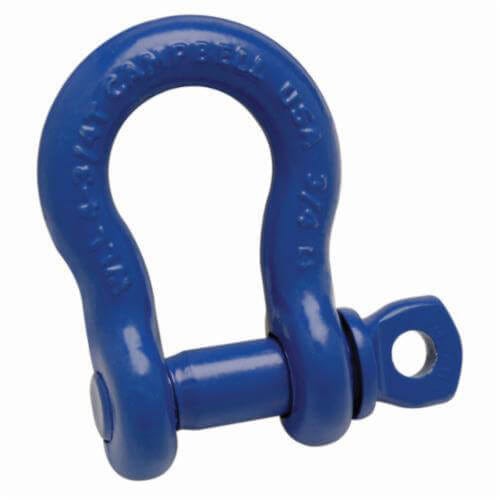

Campbell® 5410505 C-419-S Anchor Shackle, 1500 lb Load, 5/16 in, 3/8 in dia Screw Pin, Painted

Manufacturer #5410505

In stock

Be the first to review this product

List Price: $10.46

$10.46

Quantity Break Pricing may apply in the cart

HSI

FIT61652

UPC #:020418076176

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Attachments

Product Overview

Campbell® Anchor Shackle, Series: C-419-S, 1500 lb, 5/16 in, 3/8 in Pin dia, Screw Pin, 1-1/4 in Inner Length, 27/32 in Inner Width, 17/32 in Opening, 3/4 in Eye Outer Size, Drop Forged Carbon Steel Body, Heat Treated Alloy Steel Pin, Painted

Features

Self colored (painted blue)
Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
6 : 1 design factor
Pins and bolts are heat treated and made of alloy steel

Specifications

More Information
Manufacturer Part Number	5410505
Manufacturer	Apex Tool Group
Brand Name	CAMPBELL®
UPC	020418076176
Length (in)	1
Width (in)	1
Height (in)	1
Working Load Limit (lb)	1,500
Standard Approvals	Federal Spec. RR-C-271 Type IVA Grade A Class 2
Series	C-419-S
Shackle Size	5/16 in
Pin Diameter	3/8 in
Eye Outer Size (in)	3/4
Opening Size	17/32 in
Inner Width	27/32 in
Inner Length	1-1/4 in
Finish	Painted
Package Quantity	1/Each
