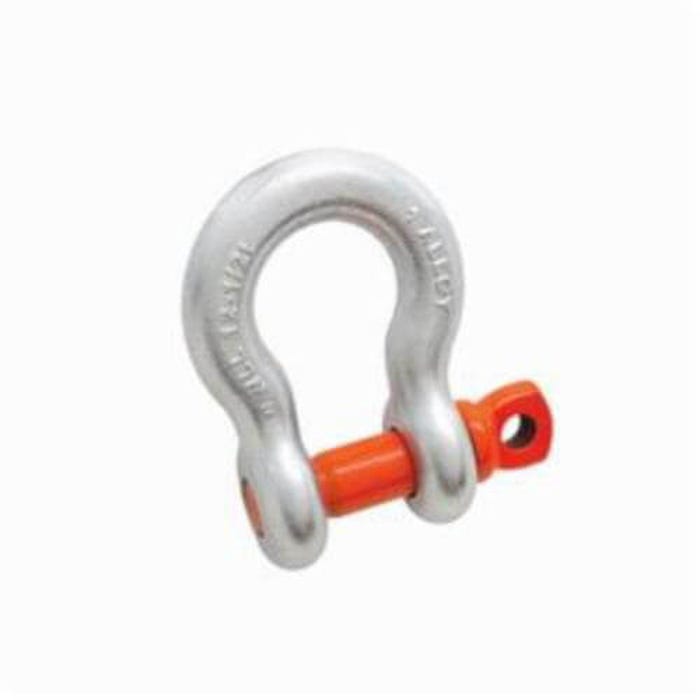

Campbell® 5411295 419-A Anchor Shackle, 7 ton Load, 3/4 in, 7/8 in dia Screw Pin, Galvanized

CAMPBELL

Manufacturer #5411295

Call for availability

Be the first to review this product

List Price: $51.95

$51.95

Quantity Break Pricing may apply in the cart

HSI

FIT62502

UPC #:020418182150

Campbell® 5411295 419-A Anchor Shackle, 7 ton Load, 3/4 in, 7/8 in dia Screw Pin, Galvanized is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Campbell® Anchor Shackle, series: 419-A, 7 ton, 3/4 in, 7/8 in Pin dia, Screw Pin, 2-13/16 in Inner Length, 1-13/16 in Inner Width, 1-1/4 in Opening, 1-3/4 in Eye Outer Size, Drop Forged Alloy Steel Body, Alloy Steel Pin, Galvanized.

Features

419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
Working load limit, size, manufacture name, date code, "CE" mark and USA permanently marked on each shackle
Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
5:1 design factor
Working load limit permanently shown on every shackle
Pins and bolts are heat treated and made of alloy steel and painted orange

Specifications

More Information
Manufacturer Part Number	5411295
Manufacturer	Apex Tool Group
Brand Name	CAMPBELL
UPC	020418182150
Length (in)	4.97
Width (in)	4
Height (in)	1.75
Series	419-A
Standard Approvals	Federal Specification RR-C-271 Class 2 Grade A Type IVA ASME B30.26 ASTM A153
Working Load Limit (ton)	7
Finish	Galvanized
Shackle Size	3/4 in
Eye Outer Size (in)	1-3/4
Opening Size	1-1/4 in
Inner Width	1-13/16 in
Inner Length	2-13/16 in
Pin Diameter	7/8 in
Package Quantity	1/Each
