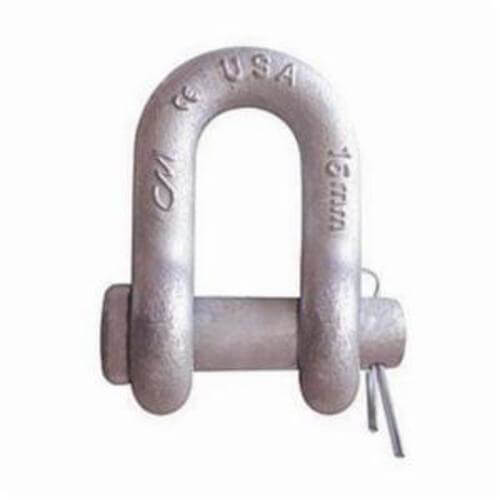

CM® M551G Super Strong Chain Shackle, 4.5 ton Load, 5/8 in, 3/4 in dia Round Pin, Galvanized

Manufacturer #M551G
Call for availability
List Price: $29.65
$29.65
Quantity Break Pricing may apply in the cart
HSI
M551G-10449
UPC #:043927403332
Product Overview
CM® Chain Shackle, Super Strong, 4.5 ton Load, 5/8 in Size, 3/4 in Pin dia, Round Pin, 2 in Inner Length, 1.09 in Inner Width, 1.09 in Opening, 1.58 in Eye Outer, Carbon Steel Body, Alloy Steel Pin, Galvanized

Features
  • Allows easy removal of pin by removing cotter pin and perform well where pin is subject to torque or twisting, but not so much in applications where pin is subject to an axial load
  • Working load limit and traceability codes shown as permanent marking on body and pin
  • All shackles have alloy quenched and tempered pins
  • Shackles made from technically advanced micro alloy material
  • Load break tests consistently show micro alloy outperforms quenched and tempered carbon material
  • Shock load testing of assemblies at -30° F consistently demonstrate micro alloy outperforms quenched and tempered carbon material
  • Shackles exhibit extreme deformation before failure
  • Design factor 6:1
  • 0.83 in inner eye
  • Cotter pin lock

Specifications
More Information
Manufacturer Part Number M551G
Manufacturer Columbus McKinnon Corporation
Brand Name CM®
UPC 043927403332
Working Load Limit (ton) 4.5
Shackle Size 5/8 in
Pin Diameter 3/4 in
Eye Outer Size (in) 1.58
Opening Size 1.09 in
Inner Width 1.09 in
Inner Length 2 in
Type Super Strong
Finish Galvanized
Standard Approvals
  • Federal Spec RR-C-271D
  • ASTM A153
Package Quantity 1/Each
