CM® M654P Super Strong Anchor Shackle, 10 ton Load, 1 in, 1-1/8 in dia Screw Pin, Orange Powder Coated

Manufacturer #M654P

In stock

Be the first to review this product

List Price: $78.99

$78.99

Quantity Break Pricing may apply in the cart

HSI

FIT30090

UPC #:043927400362

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

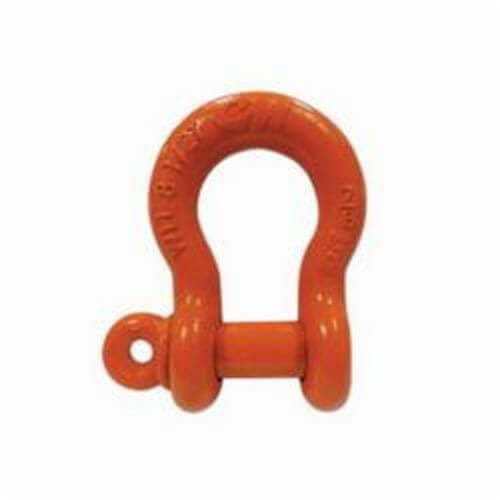

CM® Anchor Shackle, Super Strong, 10 ton, 1 in, 1-1/8 in Pin dia, Screw Pin, 3-3/4 in Inner Length, 2.312 in Inner Width, 1.688 in Opening, 2-5/8 in Eye Outer Size, Carbon Steel Body, Alloy Steel Pin, Orange Powder Coated. Screw Pin Anchor/Chain Shackles Allow Quick and Easy Removal of The Screw Pin and Can Be Useful in Applications Where The Shackle is Frequently Removed, But Not So Much in Applications Where The Pin is Subject to Torque or Twisting.

Features

Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Shock load testing of assemblies at -30° F consistently demonstrate microalloy outperforms quenched and tempered carbon material
Anchor shackles can be side loaded or used for multiple connections
6:1 design factor

Specifications

More Information
Manufacturer Part Number	M654P
Manufacturer	Columbus McKinnon Corporation
Brand Name	CM
UPC	043927400362
Standard Approvals	Federal Specification RR-C-271D
Working Load Limit (ton)	10
Type	Super Strong
Finish	Orange Powder Coated
Shackle Size	1 in
Eye Outer Size (in)	2/5/2008
Opening Size	1.688 in
Inner Width	2.312 in
Inner Length	3-3/4 in
Pin Diameter	1-1/8 in
Package Quantity	1/Each
