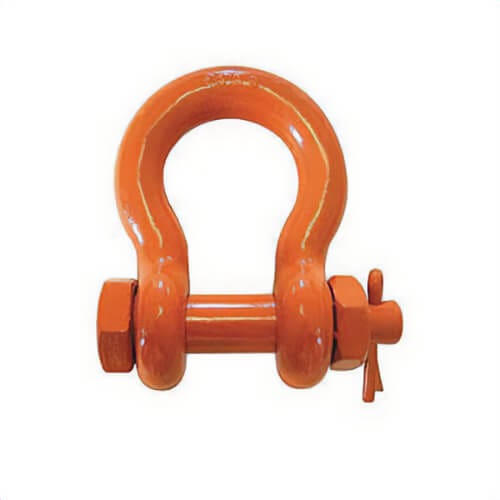

CM® M854A Anchor Shackle, 12.5 ton Load, 1 in, 1.13 in dia Bolt/Nut/Cotter Pin, Self-Colored

Manufacturer #M854A

Call for availability

$175.76

Quantity Break Pricing may apply in the cart

HSI

M854A-10449

CM® M854A Anchor Shackle, 12.5 ton Load, 1 in, 1.13 in dia Bolt/Nut/Cotter Pin, Self-Colored is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

CM® Anchor Shackle, 12.5 ton, 1 in, 1.13 in Pin dia, Bolt/Nut/Cotter Pin, 3-3/4 in Inner Length, 2.52 in Inner Width, 1.72 in Opening, 2.44 in Eye Outer Size, Alloy Steel Body, Alloy Steel Pin, Self-Colored.CM® alloy shackles are designed with a 5:1 design factor and have a strength rating approximately 50% higher than a comparable sized carbon shackle and about 25% stronger than super strong shackles. Anchor shackles can be side loaded or used for multiple connections.

Features

3/8 to 2 in sizes made in the USA from domestic (USA) Special Bar quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
2-1/2 to 3-1/2 in sizes forged form high quality German alloy steel at our STB facility in Hamm, Germany and then finished in the USA
Shackles show major deformation before failure
CM® shackles are forged to shape rather than bent like the competition, this allows for better shackle identification markings and dimensional consistency
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Shackles meet dimensional and performance requirements of RR-C-271

Specifications

More Information
Manufacturer Part Number	M854A
Manufacturer	Columbus McKinnon Corporation
Brands	CM
Standard Approvals	ASTM Certified SAE J429 ASME B30.26 EN 13889 ANSI B18
Working Load Limit (ton)	12.5
Finish	Self-Colored
Shackle Size	1 in
Eye Outer Size (in)	2.44
Opening Size	1.72 in
Inner Width	2.52 in
Inner Length	3-3/4 in
Pin Diameter	1.13 in
Package Quantity	1/Each
