CM® MC653P Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in dia Screw Pin, Orange Powder Coated

Manufacturer #MC653P

Call for availability

$65.12

Quantity Break Pricing may apply in the cart

HSI

MC653P-10449

UPC #:081767465349

CM® MC653P Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in dia Screw Pin, Orange Powder Coated is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

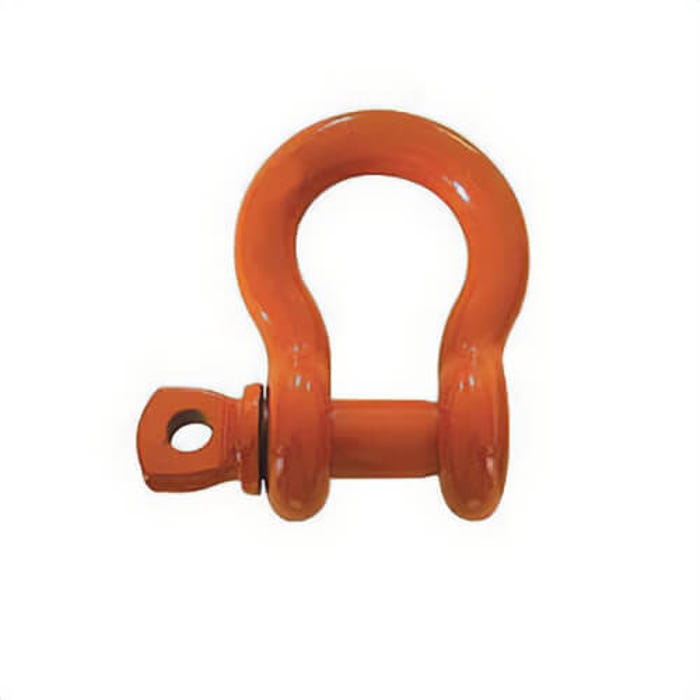

CM® Anchor Shackle, 6.5 ton Load, 7/8 in Size, 1 in Pin dia, Screw Pin, 3.31 in Inner Length, 2.06 in Inner Width, 1.44 in Opening, 2.14 in Eye Outer, Carbon Alloy Steel Body, Carbon Alloy Steel Pin, Orange Powder Coated

Features

CM® Industrial/Government rated carbon shackles are designed with a 5:1 design factor
Anchor shackles can be side loaded or used for multiple connections
Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
All shackles have alloy quenched and tempered pins
Working load limit and traceability codes shown as permanent markings on body
Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
Standard industry tolerances apply

Specifications

More Information
Manufacturer Part Number	MC653P
Manufacturer	Columbus McKinnon Corporation
Brands	CM
UPC	081767465349
Standard Approvals	ASTM Certified SAE J429 ASME B30.26 EN 13889 ANSI B18
Working Load Limit (ton)	6.5
Finish	Orange Powder Coated
Shackle Size	7/8 in
Eye Outer Size (in)	2.14
Opening Size	1.44 in
Inner Width	2.06 in
Inner Length	3.31 in
Pin Diameter	1 in
Package Quantity	1/Each
