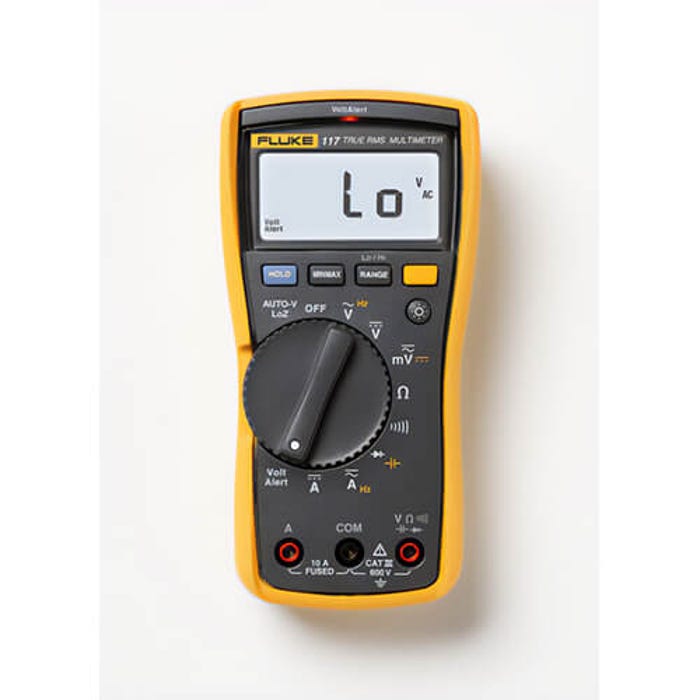

Fluke® FLUKE-117 VoltAlert™ Digital Multimeter, 600V DC/VAC, 10 A, 40 MOhm Measuring, 600V AC/DC, 10 A, 0.1 Ohm to 40 MOhm

FLUKE

Manufacturer #FLUKE-117

Call for availability

Be the first to review this product

$321.88

Quantity Break Pricing may apply in the cart

HSI

FLUKE-117-12285

UPC #:095969324205

Fluke® FLUKE-117 VoltAlert™ Digital Multimeter, 600V DC/VAC, 10 A, 40 MOhm Measuring, 600V AC/DC, 10 A, 0.1 Ohm to 40 MOhm is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Fluke® VoltAlert™ digital multimeter, 600V DC/VAC, 10 A, 40 MOhm measuring, 600V AC/DC, 10 A, 5 Hz to 50 kHz frequency, 0.1 Ohm to 40 MOhm resistance, safety rating: CAT III 600V AC/DC, 1,000 uf capacitance, 0.5% + 2 VAC accuracy, digital display, 9 VDC alkaline, NEDA 1604A, IEC 6LR61 battery, peak hold: no, yes diode test, 1.81 in L x 3.35 in W x 6.58 in H dimensions, 14 to 122°F, hard plastic.

Features

VoltAlert™ technology for non-contact voltage detection
AutoVolt automatic AC/DC voltage selection
Low input impedance helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
True-RMS for accurate AC measurements on non-linear loads
Minimum maximum/average with elapsed time to record signal fluctuations
Compact ergonomic design for one handed operation
Compatible with optional magnetic hanger (Toolpak®) for hands-free operation
2° pollution
0.5% 2 VDC accuracy
AC voltage at 45 Hz to 500 Hz 600V with accuracy of +/-( 2% 3), at 500 Hz to 1 kHz 600V with accuracy of +/-(4% 3), at 45 Hz to 500 Hz 600 mv, 6V, 60V, 600V with accuracy of +/-(1% 3), at 500 Hz to 1 kHz 600 mv, 6V, 60V, 600V with accuracy of +/-(2% 3)
Resistance range 600 Ohm with accuracy of +/-(0.9% 2), 6 kohm, 60 kohm, 600 kohm, 6 mOhm with accuracy of +/-(0.9% 1), 40 mOhm with accuracy of +/-(1.5% 2)
Capacitance range 1000 nf, 10 uf, 100 uf, 100 uf to 1,000 uf with accuracy of +/-(1.9% 2), greater than 1,000 uf with accuracy of +/-(5% 20)
Frequency range 99.99 hz, 999.9 hz, 9.999 khz, 50 kHz with accuracy of +/- (0.1% 2)
400 hours typical alkaline, without backlight
Digital 6,000 count, update 4/s display

Specifications

More Information
Manufacturer Part Number	FLUKE-117
Manufacturer	Fluke® Corporation
Brands	FLUKE
UPC	095969324205
Length (in)	10.83
Width (in)	6.3
Height (in)	3.74
Package Quantity	1/Each
