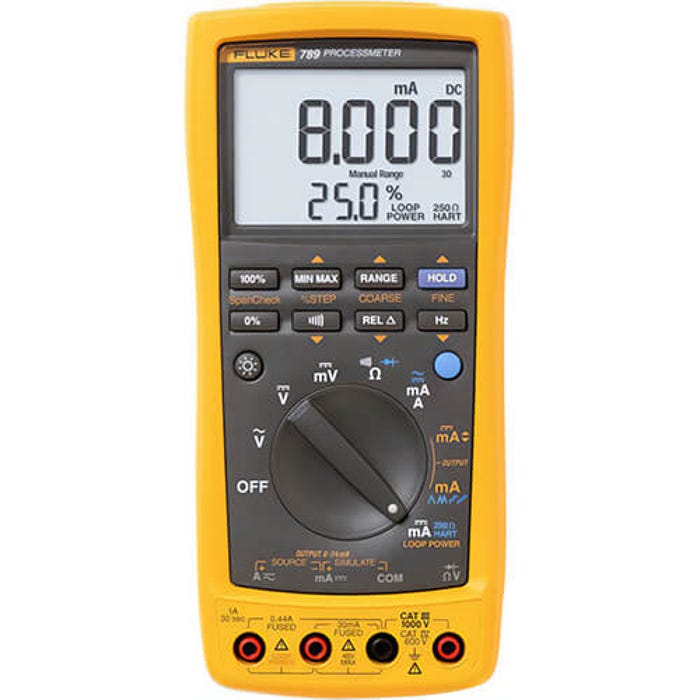

Fluke® FLUKE-789 Process Meter, 0 to 1000V AC/DC Loop, 0 to 1 A Loop, Multi-Line LCD Display, 7.35 in L x 3.41 in W x 1.25 in H

FLUKE

Manufacturer #FLUKE-789

Call for availability

Be the first to review this product

$1,653.92

Quantity Break Pricing may apply in the cart

HSI

FLUKE-789-12285

UPC #:095969112192

Fluke® FLUKE-789 Process Meter, 0 to 1000V AC/DC Loop, 0 to 1 A Loop, Multi-Line LCD Display, 7.35 in L x 3.41 in W x 1.25 in H is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

The first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it's even better, the range is extended with the Fluke® 789 the ultimate loop calibration multimeter. The Fluke® 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. and with its built-in, selectable 250-Ohm Hart® resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.

Features

24 V loop power supply
Very large dual display
Enhanced backlight with 2 brightness settings
1200 ohm drive capability on mA source
HART mode setting with loop power and a built-in 250 ohm resistor
0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
Externally accessible fuses for easy replacement
Infrared-port to process data in FlukeView Forms (V2.1) software
Precision 1000 V, 440 mA true RMS digital Multimeter
0.1% dc voltage accuracy, 0.05% dc current accuracy
Frequency measurement to 20 kHz
Min/max/average/hold/relative modes
Diode test and continuity beeper
Simultaneous mA and % of scale readout
20 mA dc current source/loop calibrator/simulator
Manual step (100%, 25%, coarse, fine) plus auto step and auto ramp
Externally accessible battery for easy battery changes
Display current and % of span, auto step, auto ramp
-20 to 55°C operating, -40 to 60°C storage temperature, 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C humidity
4 AA alkaline batteries, 140 hrs (measurement), 10 hrs (sourcing 20 mA), random, 2 g, 5-500 Hz 1 meter drop test shock and vibration

Specifications

More Information
Manufacturer Part Number	FLUKE-789
Manufacturer	Fluke® Corporation
Brands	FLUKE
UPC	095969112192
Width (in)	4.41
Height (in)	2.52
Standard Approvals	EN61010-1 CAT III/EN61010-1 CAT IV ANSI/ISA S82.01-1994 CAN/CSA C22.2 NO 1010.1-92 UL 950 Z PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Includes	(4) AA Batteries, Test Leads, Alligator Clips and Instructions
Warranty	3 year
Package Quantity	1/Each
