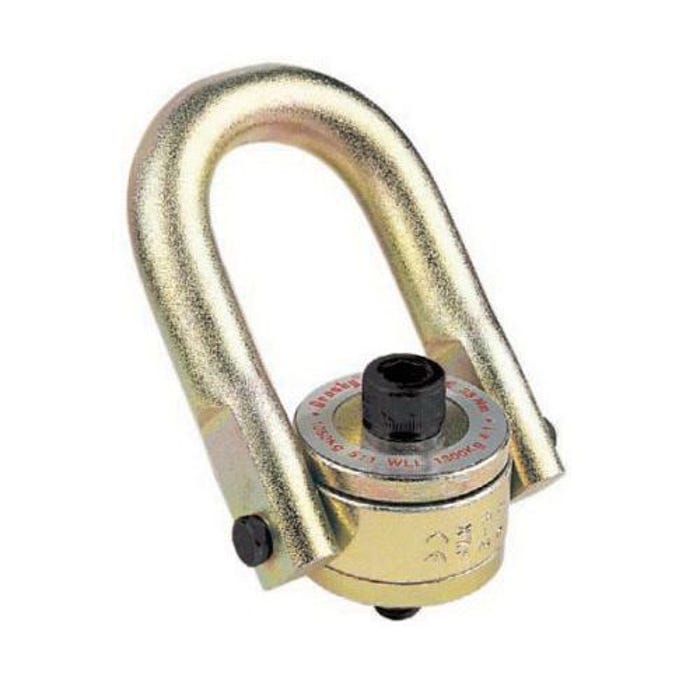

Crosby® 1016701 HR-125M Swivel Hoist Ring, 12500 kg at 5:1 Design Factor Load, 180° Pivot, 360° Swivel, 44.5 mm Bail, M42x4.5 Thread

CROSBY

Manufacturer #1016701

Call for availability

Be the first to review this product

$2,072.00

Quantity Break Pricing may apply in the cart

HSI

1016701-13143

UPC #:662547167013

Crosby® 1016701 HR-125M Swivel Hoist Ring, 12500 kg at 5:1 Design Factor Load, 180° Pivot, 360° Swivel, 44.5 mm Bail, M42x4.5 Thread is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Crosby® Swivel Hoist Ring, Series: HR-125M, 12500 kg at 5:1 Design Factor, 180° Pivot Angle, 360° Swivel, 44.5 mm Bail dia, M42x4.5, 1005 n-m Installation Torque, 215 in W

Features

Rated at 100% at 90° angle
100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
Fatigue rated to 20000 cycles at 1-1/2X the working load limit
Individually packaged along with proper application instructions and warning information
Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
Bolts are individually proof tested
Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer
Washer is color coded for easy identification, silver for metric thread
Bolt specification is a grade 12.9 alloy socket head cap screw
Designed to be used with ferrous work piece only

Specifications

More Information
Manufacturer Part Number	1016701
Manufacturer	Crosby Group
Brands	CROSBY
UPC	662547167013
Width (in)	215
Series	HR-125M
Standard Approvals	ASME B30.26 DIN 912
Load Capacity	12,500 kg at 5:1 Design Factor
Thread Size	M42 x 4.5
Package Quantity	1/Each
