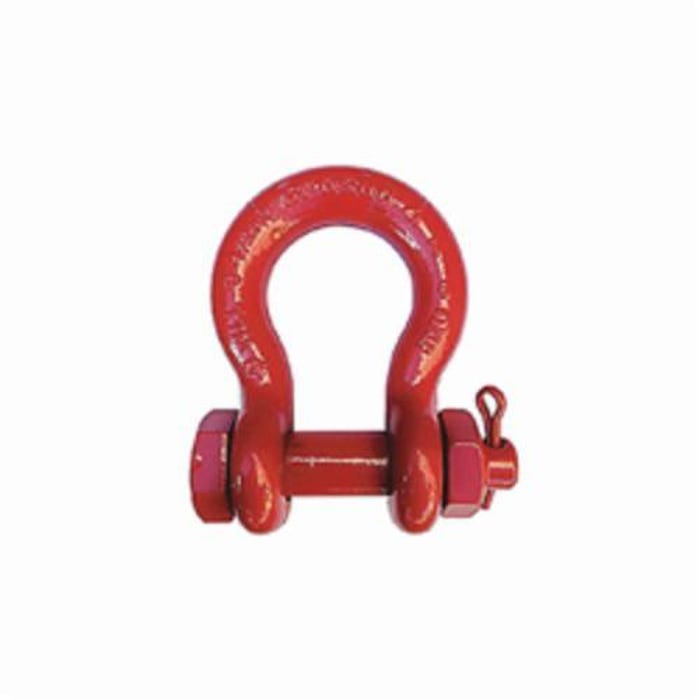

Crosby® 1019542 S-2130 Anchor Shackle, 6.5 ton Load, 7/8 in, 1.02 in Bolt Pin

Manufacturer #1019542

In stock

Be the first to review this product

List Price: $105.90

$105.90

Quantity Break Pricing may apply in the cart

HSI

FIT10959

UPC #:662547195429

Crosby® 1019542 S-2130 Anchor Shackle, 6.5 ton Load, 7/8 in, 1.02 in Bolt Pin is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Crosby® Anchor Shackle, series: S-2130, 6.5 ton Load, 7/8 in Size, 1.02 in Pin dia, bolt Pin, 3-5/16 in Inner Length, 2.28 in Inner Width, 1-7/16 in Opening, 2.09 in Eye Outer, 5.83 in OAL, 4.82 in OAW, Carbon Steel Body, Alloy Pin, Self-Colored.

Features

Working load limit and grade 6 permanently shown on every shackle
Approved for use at -40 to 400°F
3.1 Certification as standard available for Charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889
Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers
The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4°F
All other 2130 shackles can meet Charpy requirements of 42 J average at -4°F when requested at time of order
Look for the Red Pin® the mark of genuine Crosby® quality

Specifications

More Information
Manufacturer Part Number	1019542
Manufacturer	Crosby Group
Brand Name	CROSBY
UPC	662547195429
Length (in)	5.83
Width (in)	4.82
Series	S-2130
Standard Approvals	ASME B30.26 ABS 2007 Steel Vessel Rule 1-11-17.7 DNV2.7-1 Certified EN13889 Federal Spec RR-C271F Type IVA Grade A Class 3
Working Load Limit (ton)	6.5
Finish	Self-Colored
Shackle Size	7/8 in
Eye Outer Size (in)	2.09
Opening Size	1-7/16 in
Inner Width	2.28 in
Inner Length	3-5/16 in
Pin Diameter	1.02 in
Package Quantity	1/Each
