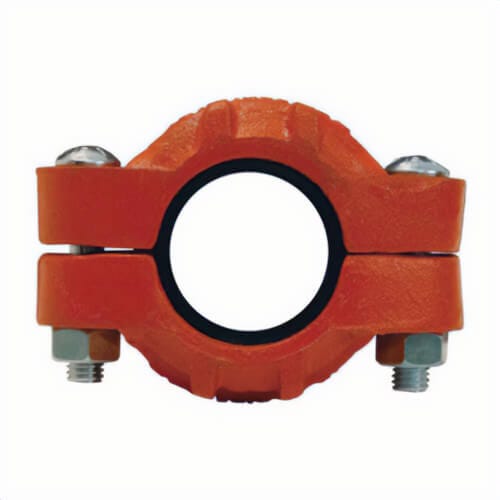

Dixon® C13BU S Hex Size Standard Pipe Coupling with Buna-N Seal Gasket, 3 in Nominal, Grooved End Style, Ductile Iron, Domestic
Manufacturer #C13BU
In stock
List Price:
$31.71
$31.71
Quantity Break Pricing may apply in the cart
HSI
C13BU-10639
Product Overview
Dixon® Pipe Coupling, Standard, Series: S Hex Size, Coupling, 3 in Nominal, Grooved, 1-27/32 in Thickness, 6-21/32 in Length, 1000 psi, Ductile Iron, 70°F, Domestic
Features
- Ductile iron body with rust inhibiting paint
- Housing design allows for optimum strength without excessive casting weight
- 3-1/2 in OD pipe
- 9621 lbs maximum end load
- 1/2 in bolt size
- 2 bolts
- 3 in L bolt
- Commercial or industrial construction, mining and process piping applications
Specifications
| Manufacturer Part Number | C13BU |
|---|---|
| Manufacturer | Dixon Valve & Coupling |
| Brand Name | DIXON |
| Length (in) | 6.656 |
| Standard Approvals |
|
| Type | Standard |
| Nominal Size | 3 in |
| Domestic/Import | Domestic |
| Fitting/Connector Type | Coupling |
| Material | Ductile Iron |
| Temperature Rating | 70°F |
| Thickness | 1.8437 in |
| Package Quantity | 1/Each |
