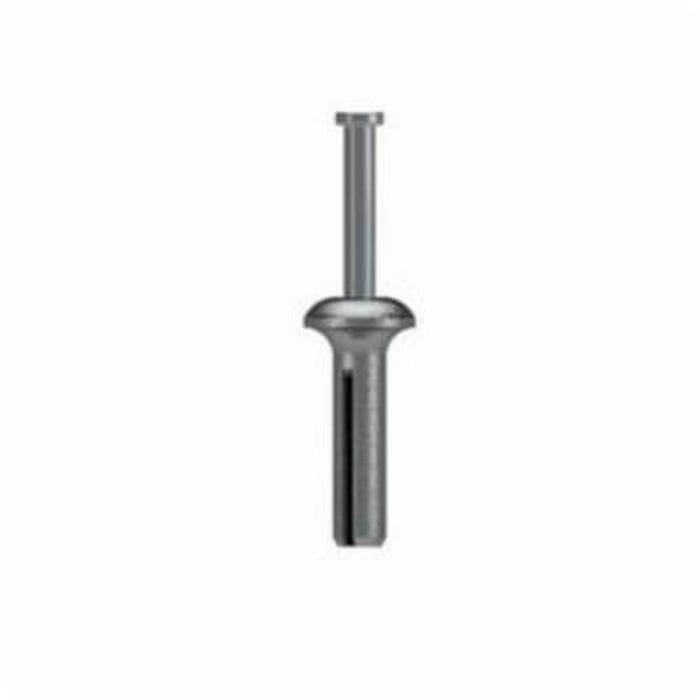

Simpson Strong-Tie® ZN25100 Nailon™ Drive Pin Anchor, 1/4 in dia, 1 in OAL, Die-Cast Zamac 3 Alloy Body Shell, Mushroom Head
Manufacturer #ZN25100
Call for availability
$0.31
$0.31
Quantity Break Pricing may apply in the cart
HSI
ANC62100
UPC #:044315548703
Simpson Strong-Tie® ZN25100 Nailon™ Drive Pin Anchor, 1/4 in dia, 1 in OAL, Die-Cast Zamac 3 Alloy Body Shell, Mushroom Head is available to buy in increments of 1
Product Overview
Simpson Strong-Tie® Drive Pin anchor, series: Nailon™, 1/4 in dia, 1 in Overall Length, Die-Cast Zamac 3 Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 5/8 in, 3/4 in, 1-1/2 in Minimum Embedment Depth, 160 lb/190 lb/265 lb at 3000 psi Shear Strength, 150 lb, 195 lb, 265 lb at 3000 psi Tensile, Zinc Plated.
Features
- Zinc Nailon™ anchors are low cost, easy-to-install anchors for applications under static loads
- Pin and head configuration designed to make anchor tamper resistant
- Carbon steel pin
- The allowable loads are based on a safety factor of 4
- 590 lb/780 lb/1050 lb ultimate tension load at 3000 psi for concrete
- 635 lb/765 lb/1050 lb ultimate shear load at 3000 psi for concrete
- 2600 to 2700°F freezing/melting point
Specifications
| Manufacturer Part Number | ZN25100 |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Brands | SIMPSON STRONG-TIE |
| UPC | 044315548703 |
| Length (in) | 1 |
| Height (in) | 0.25 |
| Series | Nailon™ |
| Standard Approvals |
|
| Head Style | Mushroom |
| Diameter | 1/4 in |
| Package Quantity | 1/Each |
