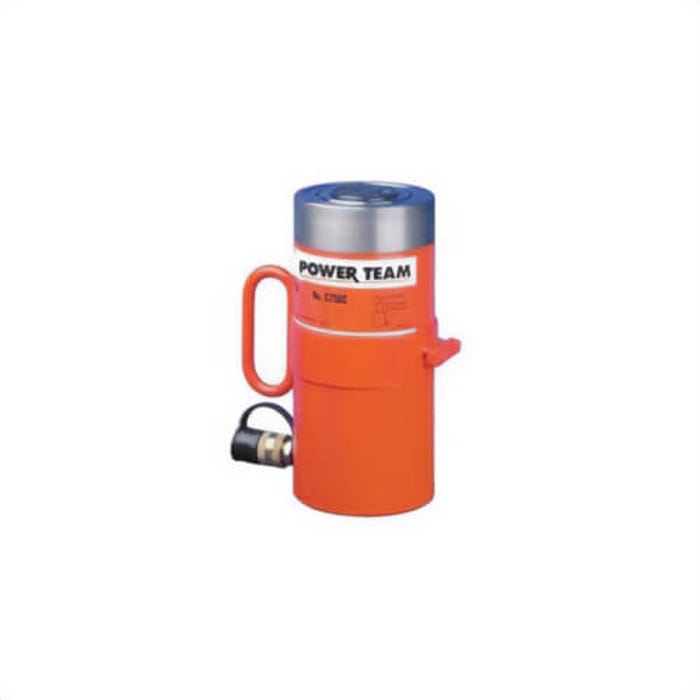

C102C 10Ton Ram 2-1/8" Stroke 4-3/4" Retracted Power Team

Manufacturer # C102C
In stock
$0.00
$441.45
HSI
THY22700
UPC #:662536000147
DESCRIPTION
10 Ton Cylinder
Features
  • Internal Press at Cap (psi): 8,948
  • Tons at 10,000 (psi): 11.2
  • Cylinder Capacity (ton): 10
  • Oil Capacity (cu in): 4.8
  • Weight: 5
  • Stroke (in): 2-1/8
  • Retracted Height A (in): 4-3/4
  • Extended Height B (in): 6-7/8
  • Outside Dia C (in): 2-1/4
  • Collar Thread D (in): 2-1/4 - 14
  • Piston Collar Thread Length E (in): 1-1/8
  • Base to Port F (in): 3/4
  • Piston Rod Dia H (in): 1-1/2
  • Piston Rod Int Thread and Depth J (in): 1-8 x 3/4
  • Rod Protrusion K (in): 1/4
  • Bore Dia (in): 1-11/16
  • Cylinder Effective Area (sq in): 2.236
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number C102C
Manufacturer SPX FLOW
Brand Name POWER TEAM®
UPC 662536000147
