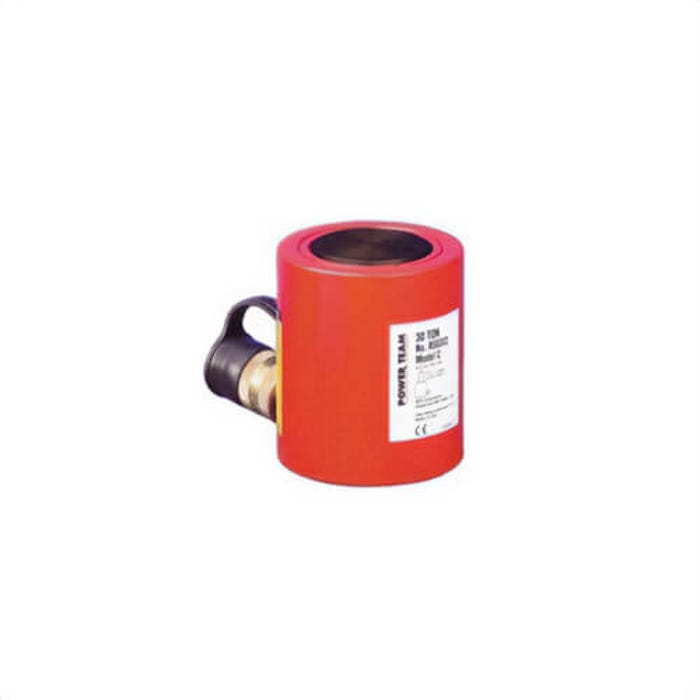

Power Team® RSS302 Shorty Single-Acting Spring-Return Hydraulic Cylinder, 30 ton Capacity, 2-7/8 in dia Bore

POWER TEAM

Manufacturer #RSS302

In stock

Be the first to review this product

$1,161.93

Quantity Break Pricing may apply in the cart

HSI

THY24600

UPC #:662536003582

Power Team® RSS302 Shorty Single-Acting Spring-Return Hydraulic Cylinder, 30 ton Capacity, 2-7/8 in dia Bore is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Power Team® hydraulic cylinder, shorty single-acting spring-return, series: RSS, 30 ton, 2-7/8 in dia bore, 2-7/16 in stroke, 4-5/8 in H retract, 2-1/2 in rod dia, 9,243 psi, steel housing, 4 in OD.

Features

Ideal for confined areas from 3-1/2 in to 11-7/16 in clearance
Power tech plated piston rods and gland nuts resist scoring and corrosion
Heavy duty return spring (except for double-acting models) provides fast piston return and low collapsed height
Coupler on 10 thru 50 ton models is angled upward 5° for added clearance
Grooved piston top keeps load from sliding
Cylinders can be dead-ended at full capacity

Specifications

More Information
Manufacturer Part Number	RSS302
Manufacturer	Hydraulic Technologies
Brands	POWER TEAM
UPC	662536003582
Height (in)	4
Package Quantity	1/Each
