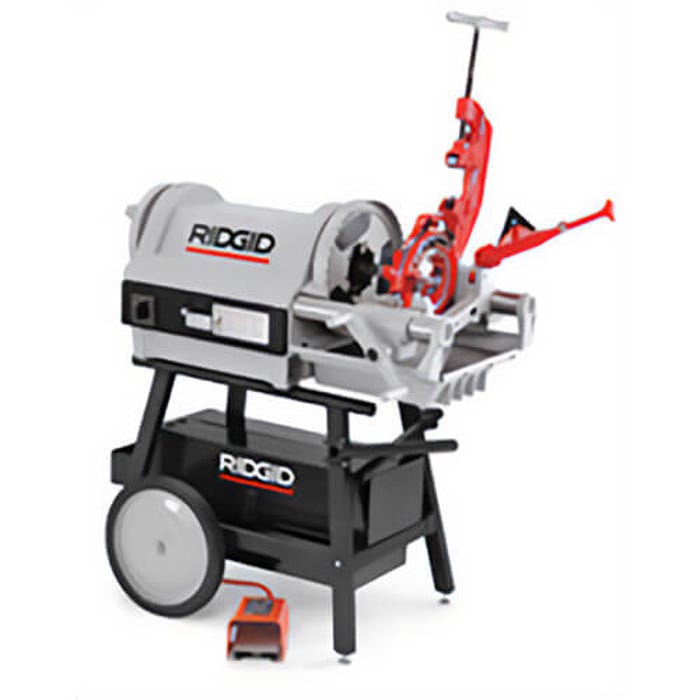

Ridgid® 26097 Threading Machine Kit 1224, 1/2 to 4 in Pipe, 1/4 to 2 in Bolt, 240 VAC, 1.5 hp, 36/12 RPM Speed

RIDGID

Manufacturer #26097

Call for availability

Be the first to review this product

$12,405.01

Quantity Break Pricing may apply in the cart

HSI

26097-12632

UPC #:095691260970

Ridgid® 26097 Threading Machine Kit 1224, 1/2 to 4 in Pipe, 1/4 to 2 in Bolt, 240 VAC, 1.5 hp, 36/12 RPM Speed is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Ridgid® threading machine kit, kit, 1/2 to 4 in, 36/12 RPM, 1.5 hp, 240 VAC, 8 A, 1/4 to 2 in bolt, reversing: yes, heavy-duty rotary forward/off/reverse/integral foot switch control.

Features

The model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
An induction motor helps minimize noise
A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
Universal die head 1/4 to 2 in, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
Constant and proper lubrication of dies and workpiece with through head oiling
Two-speed gear box with a 3:1 ratio
Hammer-type chuck with replaceable rocker action jaw inserts
Cam action rear centering device
Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
Through die head oiling
Versatility: threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
Low voltage operation: special start/run capacitors allow operation in less than ideal conditions

Specifications

More Information
Manufacturer Part Number	26097
Manufacturer	Emerson Electric
Brands	RIDGID
UPC	095691260970
Length (in)	47
Width (in)	32.8
Height (in)	21
Product Type	Kit
Includes	26132 - 711 SO Universal Right Hand Dies, 26152 - 714 SO Receding Right Hand Dies, 26192 - 1224 2-1/2 to 4 in NPT HS Dies, 47745 - 1/2 to 3/4 in Universal Alloy Die Set, 47750 - 1 to 2 in Universal Alloy Die Set, 26212 - 1/4 to 4 in Wheel Type Cutter, 262
Warranty	Lifetime
Bolt Size	1/4 to 2 in
Pipe Capacity	1/2 to 4 in
Speed	36/12 rpm
Package Quantity	1/Each
