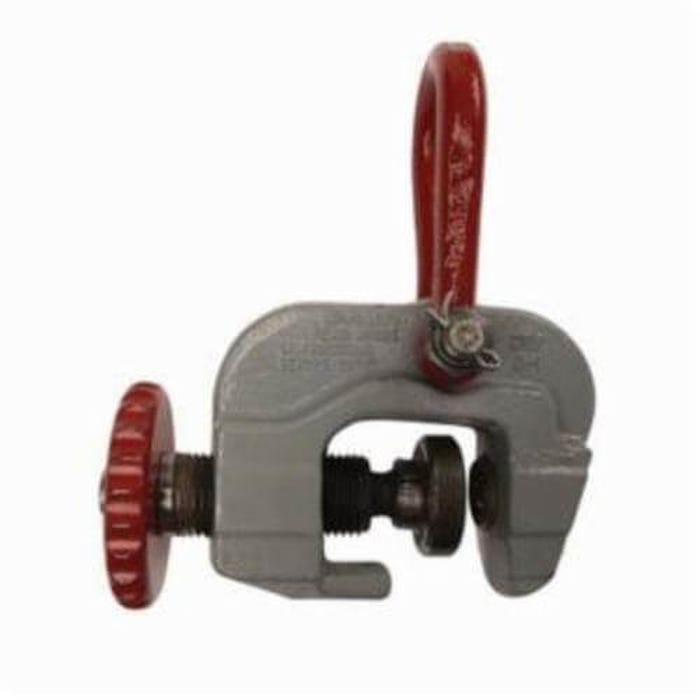

Campbell® 6421000 Screw Adjusted Cam Plate Clamp, 1 ton Load, 1 in Jaw Opening, 6-1/4 in OAW, Forged Steel, Load Activated/Screw Locking

Manufacturer #6421000

In stock

Be the first to review this product

List Price: $975.65

$975.65

Quantity Break Pricing may apply in the cart

HSI

MAT60150

UPC #:020418096396

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Campbell® Plate Clamp, Screw Adjusted Cam, 1 ton, 1 in Jaw Opening, 2-7/8 in Bail Opening Height, 1-3/4 in Bail Opening Width, 6-1/4 in OAW, Load Activated/Screw Locking, Forged Steel.

Features

Recommended for turning plates from horizontal to vertical as well as through a 180 degree arc
The convex, serrated cam swivels on a ball joint so that the area of cam engagement increases as load increases
Drop forged body and shackle
Clamps are 100% proof tested and certificate of test supplied with each clamp
Minimum wll of at least 10% of the maximum wll
Note - Clamp features a torque limiting handle to prevent overtightening
Screw needs to be hand tight only, do not overtighten
Fixed eye mounting

Specifications

More Information
Manufacturer Part Number	6421000
Manufacturer	Apex Tool Group
Brand Name	CAMPBELL
UPC	020418096396
Length (in)	8
Width (in)	6.25
Height (in)	3.25
Jaw Opening	1 in
Type	Screw Adjusted Cam
Material	Forged Steel
Package Quantity	1/Each
