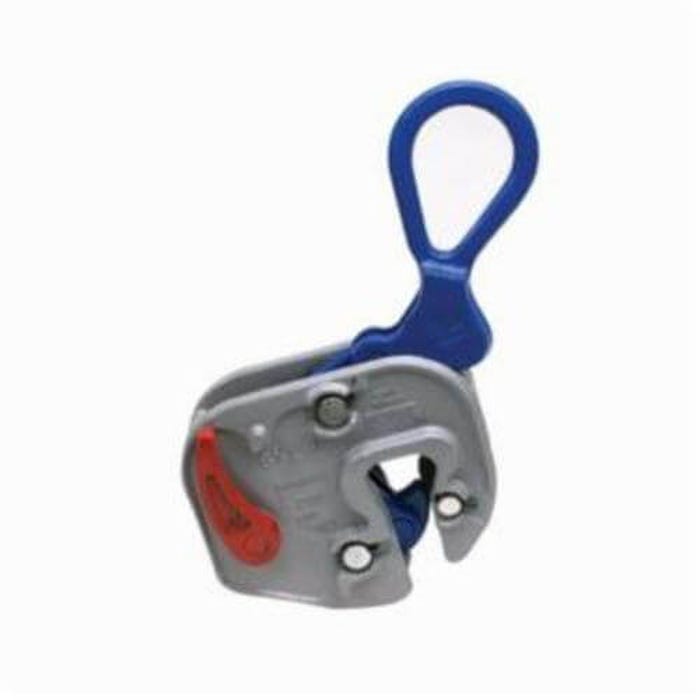

Campbell® 6422001 GXL Plate Clamp, 1 ton Load, 1/16 to 3/4 in Jaw Opening, 6-9/16 in OAW, Forged Steel, Load Activated Locking

CAMPBELL

Manufacturer #6422001

Call for availability

Be the first to review this product

$1,238.10

Quantity Break Pricing may apply in the cart

HSI

MAT60355

UPC #:020418185687

Campbell® 6422001 GXL Plate Clamp, 1 ton Load, 1/16 to 3/4 in Jaw Opening, 6-9/16 in OAW, Forged Steel, Load Activated Locking is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Campbell® Plate Clamp, series: GXL, 1 ton, 1/16 to 3/4 in Jaw Opening, 3-1/16 in Bail Opening Height, 2-1/16 in Bail Opening Width, 6-9/16 in OAW, Load Activated Locking, Forged Steel.

Features

Can be used for both vertical and horizontal to vertical lifting through 180 deg
Drop forged and heat treated components, with gripping surfaces of case hardened alloy steel
Exclusive feature is a patented wear indicator system
When any of the cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
Note - The pad and cam should be replaced at the same time
Newly designed "cam engaging locking lever" keeps the cam in contact with the plate
The tension arm and spring mechanism facilitate attaching and removing the clamp
These clamps will not lift plate when in the "lever open" position
Clamps are 100% proof tested and certificate of test supplied with each clamp
Minimum wll of at least 10% of the maximum wll
Fixed eye mounting

Specifications

More Information
Manufacturer Part Number	6422001
Manufacturer	Apex Tool Group
Brands	CAMPBELL
UPC	020418185687
Length (in)	9.5
Width (in)	6.5625
Height (in)	3
Series	GXL
Jaw Opening	1/16 to 3/4 in
Material	Forged Steel
Package Quantity	1/Each
