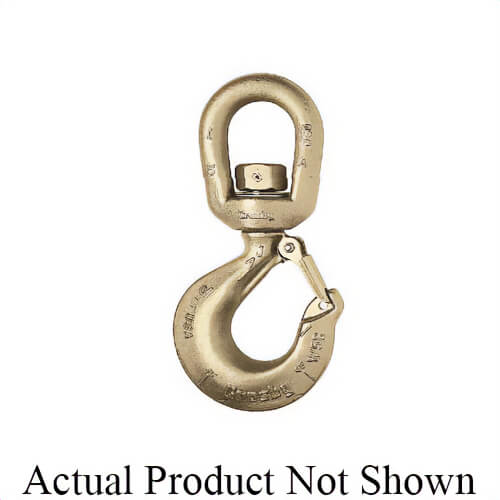

Crosby® 1048898 L-322AN Swivel Hook with Latch, 30 ton WLL, Swivel Attachment
Manufacturer #1048898
Call for availability
$3,877.00
$3,877.00
Quantity Break Pricing may apply in the cart
HSI
1048898-13143
UPC #:662547491989
Crosby® 1048898 L-322AN Swivel Hook with Latch, 30 ton WLL, Swivel Attachment is available to buy in increments of 1
Product Overview
Crosby® swivel hook, series: L-322AN, hook ID code "O", 4 in hook opening, 13.62 in overall widthm 30 ton working load limit, swivel attachment, forged alloy steel.
Features
- Forged, quenched and tempered
- Swivel Hooks are load rated
- Proper design, careful forging and precision controlled quenched and tempering give maximum strength without excessive weight and bulk
- Low profile hook tip designed to utilize Crosby® S-4320 or PL-N latch kit
- Hoist hooks incorporate markings forged into the product which address two (2) Quic-Check® features
- Deformation indicators, two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a Quic-Check® measurement to determine if the throat opening has changed, thus indicating abuse or overload
- Angle indicators, indicates the maximum included angle which is allowed between two (2) sling legs in the hook, these indicators also provide the opportunity to approximate other included angles between two sling legs
Specifications
| Manufacturer Part Number | 1048898 |
|---|---|
| Manufacturer | Crosby Group |
| Brands | CROSBY |
| UPC | 662547491989 |
| Working Load Limit (ton) | 31.5 |
| Series | L-322AN |
| Design Factor | 4:1 |
| Package Quantity | 1/Each |
