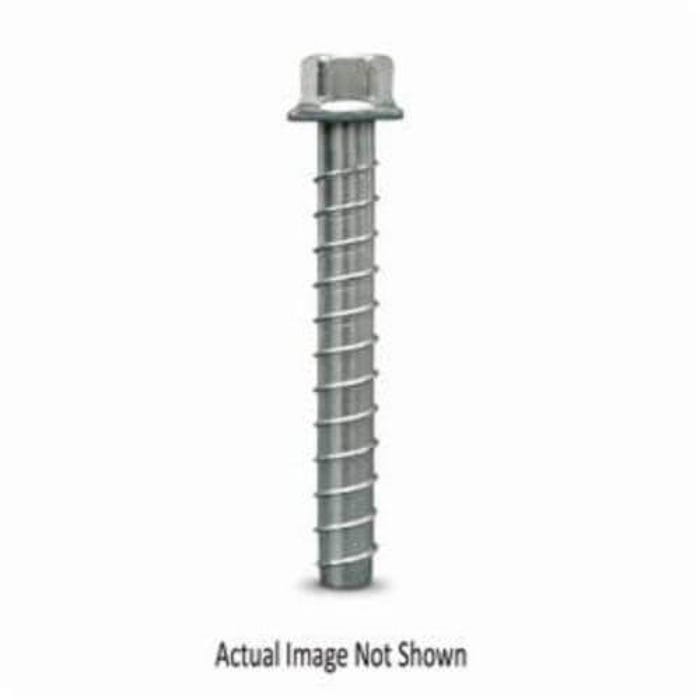

Simpson Strong-Tie® THDB25234H Heavy Duty Screw Anchor, 1/4 in dia, 2-3/4 in OAL, Hex Washer Head Drive, Carbon Steel

SIMPSON STRONG-TIE

Manufacturer #THDB25234H

Call for availability

Be the first to review this product

$1.31

Quantity Break Pricing may apply in the cart

HSI

THDB25234H-12864

UPC #:707392548010

Simpson Strong-Tie® THDB25234H Heavy Duty Screw Anchor, 1/4 in dia, 2-3/4 in OAL, Hex Washer Head Drive, Carbon Steel is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simpson Strong-Tie® Screw anchor, Heavy Duty, series: Titen HD®, 1/4 in dia, 2-3/4 in OAL, Hex Washer Head Drive, Carbon Steel, 1-5/8 in Minimum Embedment Depth, 1/4 in Drill, Zinc Plated, Applicable Materials: Concrete and Masonry, 3/8 in Head, 3-1/2 in Maximum Work Thickness, 2020 lb Shear Strength, 5195 lb Tensile. The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD® offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD® demonstrates industry-leading performance even in seismic conditions.

Features

Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional size
Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
Hex washer head requires no separate washer and provides a clean installed appearance
Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
3/8 in dia baseplate clearance hole
24 ft-lb maximum installation torque
1-3/4 in D minimum hole
1-1/2 in minimum edge distance
3 in minimum spacing
100000 psi yield strength

Specifications

More Information
Manufacturer Part Number	THDB25234H
Manufacturer	Simpson Strong-Tie
Brands	SIMPSON STRONG-TIE
UPC	707392548010
Length (in)	2.75
Height (in)	0.25
Series	Titen HD®
Standard Approvals	U S Patent 5,674,035/6,623,228 City of Los Angeles RR25741 RR25560 Florida Statewide Product FL15730.7 FM 3017082 3035761 3043442
Package Quantity	1/Each
