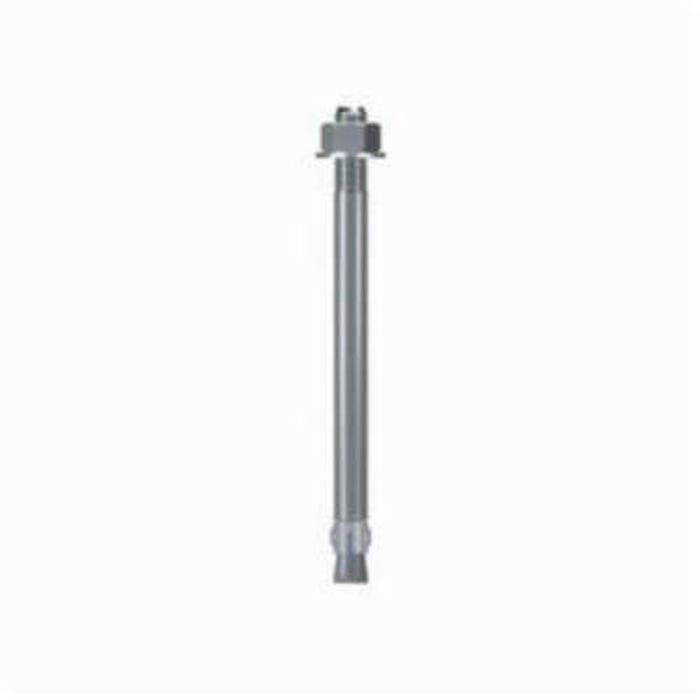

Simpson Strong-Tie® WA87120 Wedge-All® Wedge Anchor, 7/8 in dia, 12 in OAL, 2-1/8 in L Thread, Carbon Steel, Zinc Plated

SIMPSON STRONG-TIE

Manufacturer #WA87120

Call for availability

Be the first to review this product

$18.60

Quantity Break Pricing may apply in the cart

HSI

ANC76950

UPC #:044315818301

Simpson Strong-Tie® WA87120 Wedge-All® Wedge Anchor, 7/8 in dia, 12 in OAL, 2-1/8 in L Thread, Carbon Steel, Zinc Plated is available to buy in increments of 5

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simpson Strong-Tie® wedge anchor, series: Wedge-All®, 7/8 in dia, 12 in OAL, 2-1/8 in thread length, carbon steel, zinc plated, 3-7/8 in minimum embedment depth, 7/8 in drill, 1-5/16 in head, 2,059 lb shear strength, 821 lb tensile a non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All® wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as types 303/304 and type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All® is code listed for grout-filled masonry applications.

Features

Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
One-piece, wrap-around clip ensures uniform holding capacity
Threaded end is chamfered for ease of starting nut
Available in a wide range of diameters and lengths
Carbon steel ASTM A563 grade A nut
The minimum concrete thickness is 1-1/2 times the embedment depth
The allowable loads are based on a safety factor of 4
1 in minimum fixture hole
200 ft-lb installation torque
7480 lb at 2000 psi/10720 lb at 4000 psi ultimate tension loads and 1870 lb at 2000 psi, 2275 lb at 3000 psi, 2680 lb at 4000 psi allowable tension load for concrete
13760 lb at 2000 psi ultimate shear loads and 3440 lb at 2000/3000/4000 psi for concrete
Anchor body material meets minimum 70000 psi tensile strength

Specifications

More Information
Manufacturer Part Number	WA87120
Manufacturer	Simpson Strong-Tie
Brands	SIMPSON STRONG-TIE
UPC	044315818301
Length (in)	12
Height (in)	0.875
Series	Wedge-All®
Standard Approvals	Federal Specification A-A-1923A Type 4 FM 3017082 3031136 3043442 Florida FL15730.8 UL File Ex3605
Head Size	1-5/16 in
Diameter	7/8 in
Material	Carbon Steel
Thread Length	2-1/8 in
Package Quantity	5/Each
